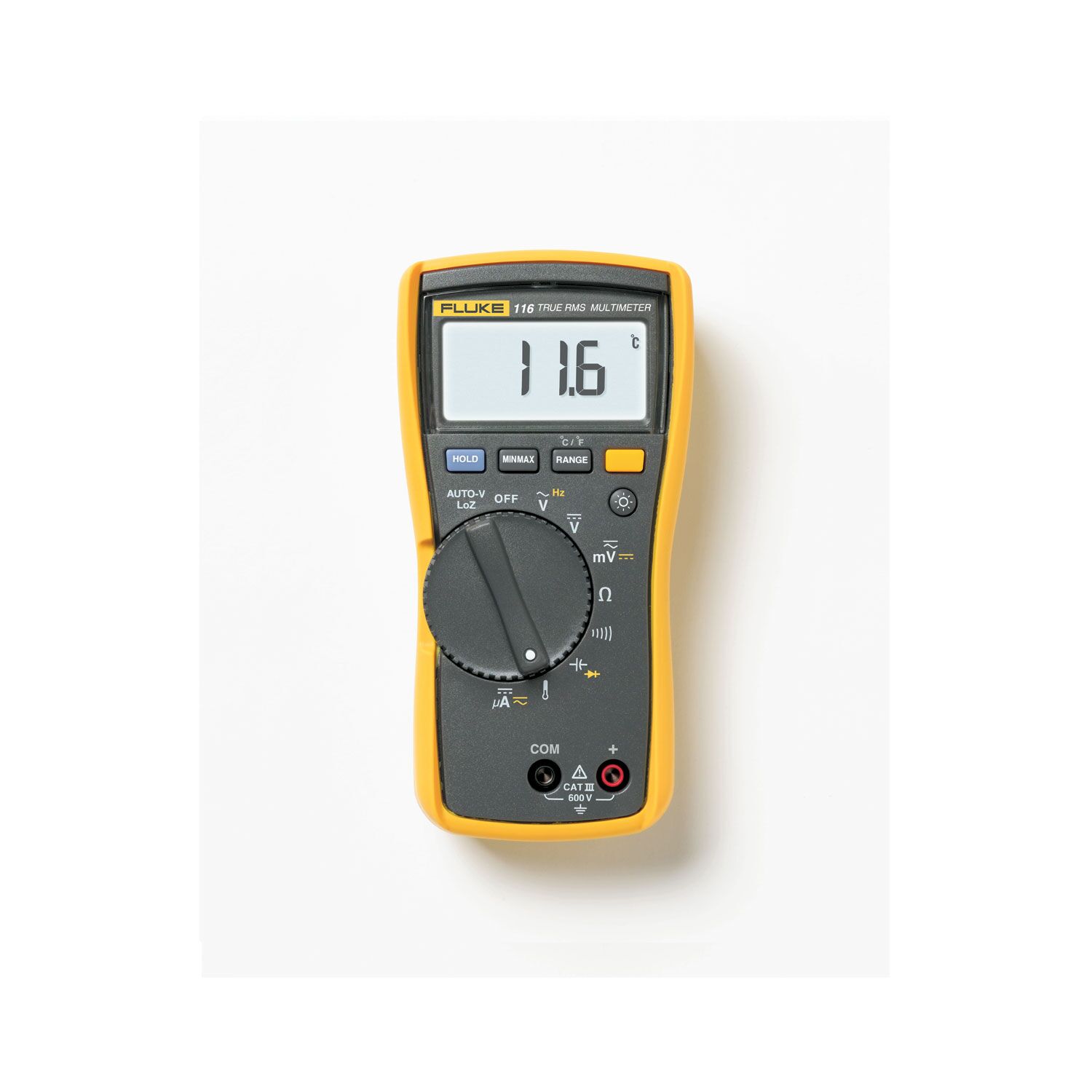

Fluke 116 HVAC Digital Multimeter

Fluke 116 Digital Multimeter designed specifically for HVAC professionals

The Fluke 116 Digital Multimeter provides the features you need to quickly troubleshoot HVAC equipment

The Fluke 116 HVAC multimeter was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 digital multimeter also measures resistance, continuity, frequency, and capacitance; and the large white LED backlight makes it easy to see results even in poorly lit areas.

The Fluke 110 Series has five true-rms digital multimeters, each for specific users. The compact instruments offer convenient one-handed operation and a backlit display with large, easy-to-read digits.

Supplied with:

• Built-in thermometer: -40 to +400°C

• Microamps mode – specifically made for testing flame sensors

• DC millivolts measurements: 600mV

• AC/DC voltage measurements: 600V

• Continuity test & Diode test

• Resistance measurements: 40MΩ

• Capacitance test: 1000μF

• Frequency measurements: 50Hz

• 6000 count digital LCD display with integrated backlight

• 33 segment analogue bargraph on display

• Battery life: 400 hours (typical use, without backlight)

• True RMS – maintains accuracy when testing on irregular AC circuits

• LoZ mode

• MIN/MAX/AVG mode with elapsed time

• Compact, ergonomic design

• CAT III 600V
