Laserliner PocketPlane-Laser 3G
£239.99 Price incl. VAT: £287.99
Three-dimensional, practical laser with one horizontal and two vertical green laser circles and a comprehensive range of accessories – a versatile tool for demanding projects.

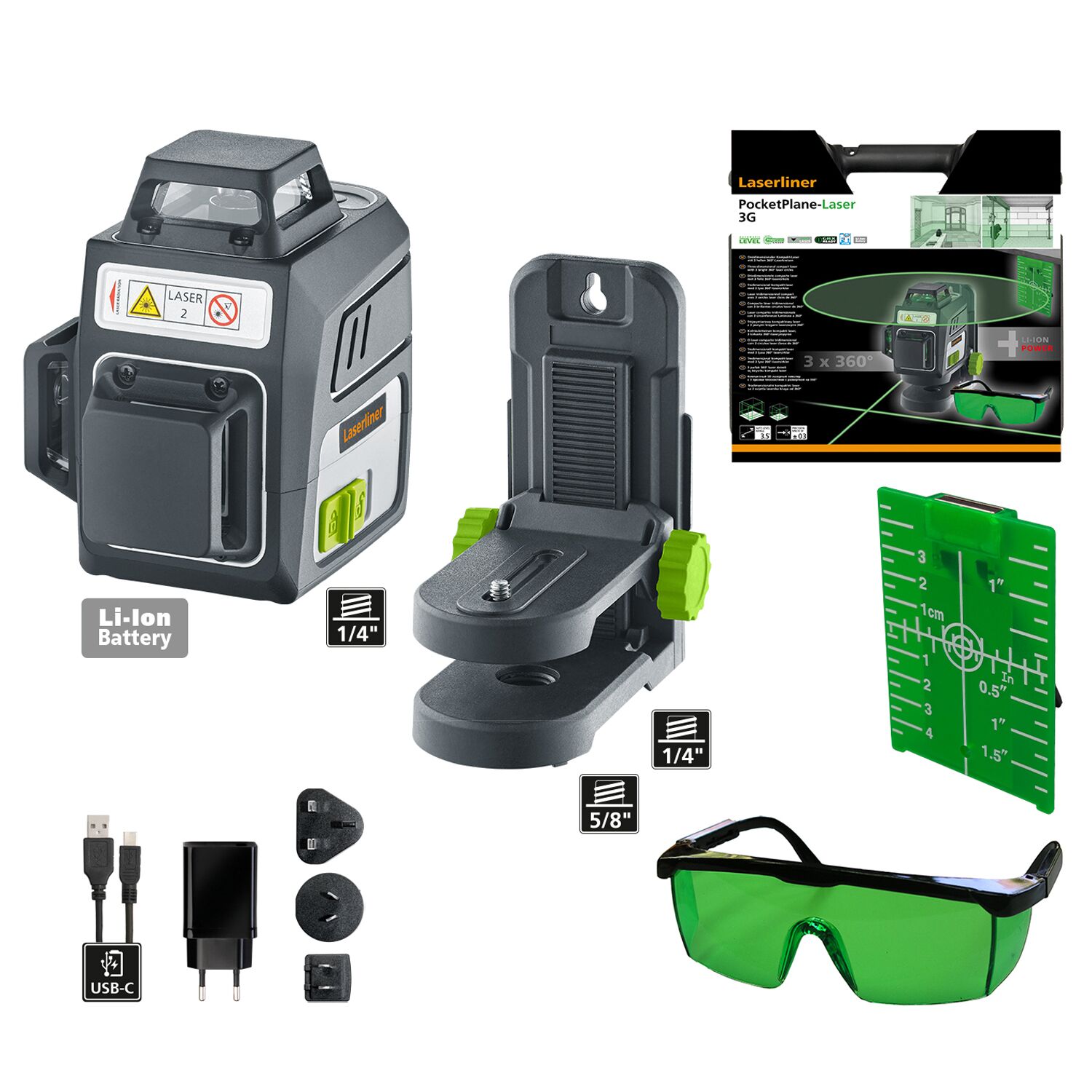

Supplied with:
- PocketPlane-Laser 3G
- Multi-functional magnetic bracket
- Li-ion battery + charger + USB-C-cable
- Green laser glasses
- Laser target plate
- Hard Case
- 4 Year Warranty
Description
This three-dimensional, practical and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients.
This laser is a particularly useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. The target plate is particularly useful when working close to the ceiling, for example, when fitting suspended ceilings, and can be attached to metal profiles with the magnet. It has a stand, nail hole, and a scale in centimetres and inches. These laser enhancement glasses allow laser lines to be clearly seen with the human eye. The powerful lithium-ion battery, which can charged using the USB-C cable, ensures a long operating life. Alternatively, the device can run on mains power using the power supply which is also included.
Features:
Supplied with:
Automatic Level
Exact horizontal & vertical alignment of objects
Laser Range
Typically 30m, can be extended with optional CombiRangeXtender 40.
Better Laser Vision
Good visibility through green laser technology
Li-ion Battery
This product can be charged via the USB-C interface
Laserliner PocketPlane-Laser 3G - Video Tutorial
PocketPlane-Laser 3G
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Additional information
| Brand |
Laserliner |
|---|
Product Specification
Product Specification
| SELF-LEVELLING RANGE | ± 3.5° (horizontal) |
| ACCURACY | ± 0.3 mm / m |
| LEVELLING | automatic |
| VISIBILITY (TYPICAL)* | 30 m |
| WORKING RANGE WITH HAND RECEIVER |
(depends on how the technology affects the difference in brightness) 60 m |
| LASER WAVELENGTH | 515 nm |
| LASER CLASS | 2 / < 1 mW (EN
60825-1:2014/AC:2017) |
| POWER SOURCE | Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh |
| OPERATING TIME | with 3 laser levels: approx. 9 hours |
| OPERATING CONDITIONS | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| STORAGE CONDITIONS | -10°C … 70°C, max. humidity 80% rH |
| DIMENSIONS (W X H X D) | 104 mm x 97 mm x 76 mm |
| WEIGHT | 388 g (incl. battery pack) |
