Laserliner VideoInspector 3D

SKU: 082.270A

Professional video inspection system – 1m snake length

Manual 3D control | 6mm flexible camera | 1m snake length
REC function | HOLD function
Micro USB port | Rechargeable

Supplied with:

Li-ion battery pack | USB charge cable | HDMI cable
8 GB micro-SD card | Card reader | Magnetic mount | Hard Case
4 Year Warranty

CALL FOR PRICE:
0800 292 2188
FREEPHONE

Compare

Description
Product Specification
Warranty
About brand
Shipping & Delivery

Description

Professional video inspection system with individually flexible camera head

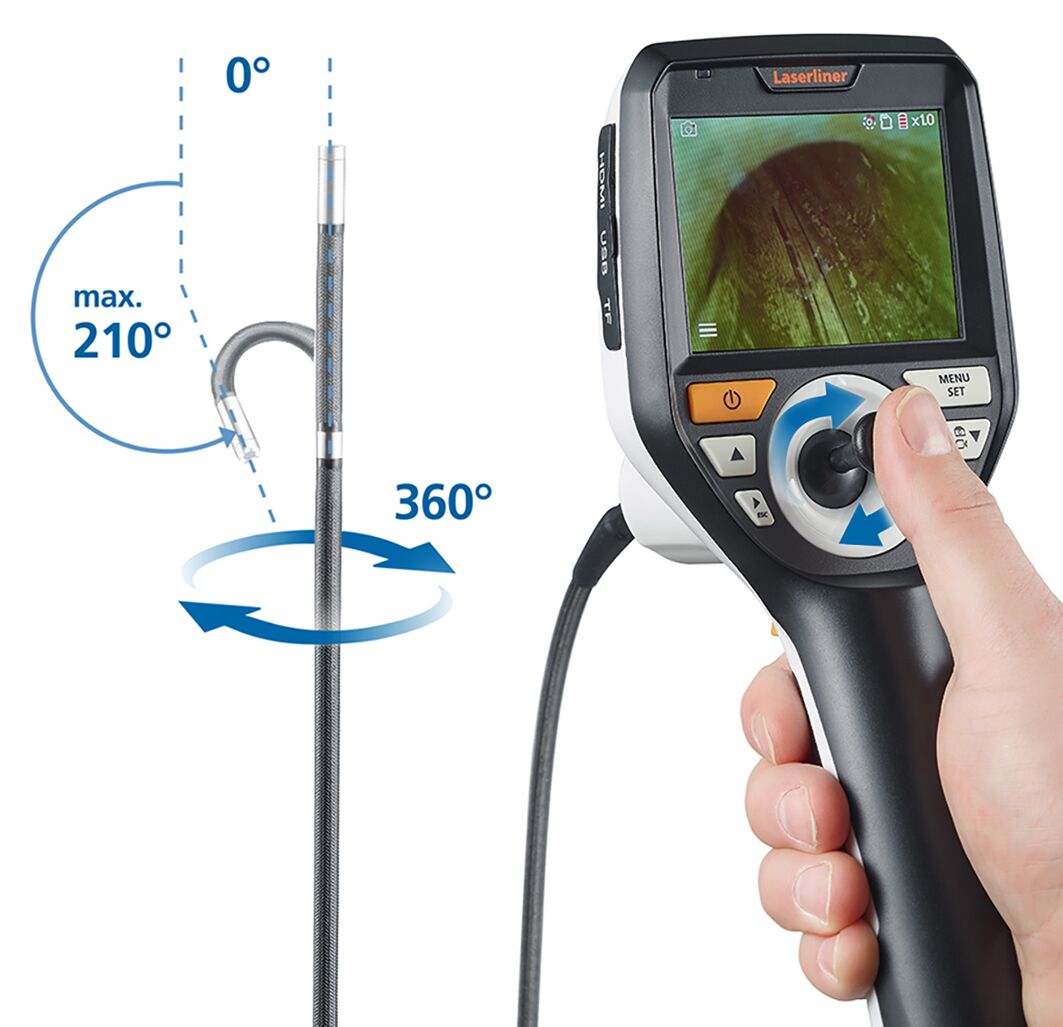

Manual 3D control of titanium camera head which moves through max. 210°
This is the first camera on the market with one handed head adjustment
Find objects in difficult locations: due to the LED-lighting, the camera indicates what is behind or in objects, walls circuits or cables etc, even under the worst of light conditions
Ideal for difficult to access areas due to the small measuring head (ø 6 mm)
Powerful object lighting thanks to 6 high-performance ceramic LEDs
Extraneous light reduction: contrasty LC-Display which provides an optimum display even under very bright lighting.
Image rotation in 90° increments
REC-Function: still picture and video can be recorded for a later analysis
Hold function: freeze frame
External monitors operated via HDMI connection
Micro USB port for charging battery
Replaceable camera unit
Waterproof camera head & cable
Sturdy, durable adjustment mechanism
High-grade, long-life flexible tungsten tubing

Supplied with:

Magnetic Mount
Li-ion Battery Pack
USB charge cable
HDMI cable

8 GB micro-SD card
Card reader
Screwdriver
Hard case
4 Year Warranty

One handed manual 3D control

Manual 3D control of titanium camera head which moves through max. 210°

Laserliner VideoInspector 3D - ideal for hard to access areas

Ideal for difficult accessibly areas

Thanks to the very small measuring head (ø 6 mm)

Very small measuring head (6 mm)

Find what is behind or in objects, walls circuits or cables etc

Laserliner VideoInspector 3D - Magnetic Mount

Handy magnetic mount

And sturdy construction with durable adjustment mechanism

Video Tutorials

Inspection camera with user controlled camera head articulation & powerful LED lighting. Manual 3D control of titanium camera head which moves through over 210°.

Key Features

Manual 3D control of titanium camera head which moves through max. 210°
The 1st camera on the market with one handed head adjustment
Ideal for difficult to access areas
Powerful object lighting thanks to 6 high-performance ceramic LEDs
Image rotation in 90° increments

Overview	Applications
1m snake	Electricians, HVAC
Camera head moves through 210°	Tradesmen
Focal depth 2.5 – 10cm	DIY Enthusiasts
TFT 3.5 inch colour
Camera Resolution – 960 x 720 / Display Resolution 640 x 480
Waterproof IP 67
LED 7 brightness levels
ZOOM 10 levels
REC function JPEG / BMP / MP4
Micro USB connection
Li-ion battery pack, 5V/DC power supply unit

VideoInspector 3D
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner VideoInspector 3D – Data Sheet

Product Specification

Camera head:	ø 6 mm, waterproof, IP 67
Camera focus:	F2.5 cm – F10 cm
Screen type:	3,5” TFT colour display
Camera resolution:	960 x 720 pixels
Picture/video resolution:	960 x 720 pixels
Resolution display:	640 x 480 pixel
LED:	7 brightness levels
Zoom:	10 zoom levels
Length of flex cable:	1 m
Power supply:	Li-ion battery pack, power supply unit 5V/DC
Operating temperature:	-10 – 50°C
Storage temperature:	-20 – 60°C
Weight (inc battery pack & flex cable / without mount):	0.485 kg

Warranty

4 Year Manufacturer’s Warranty
