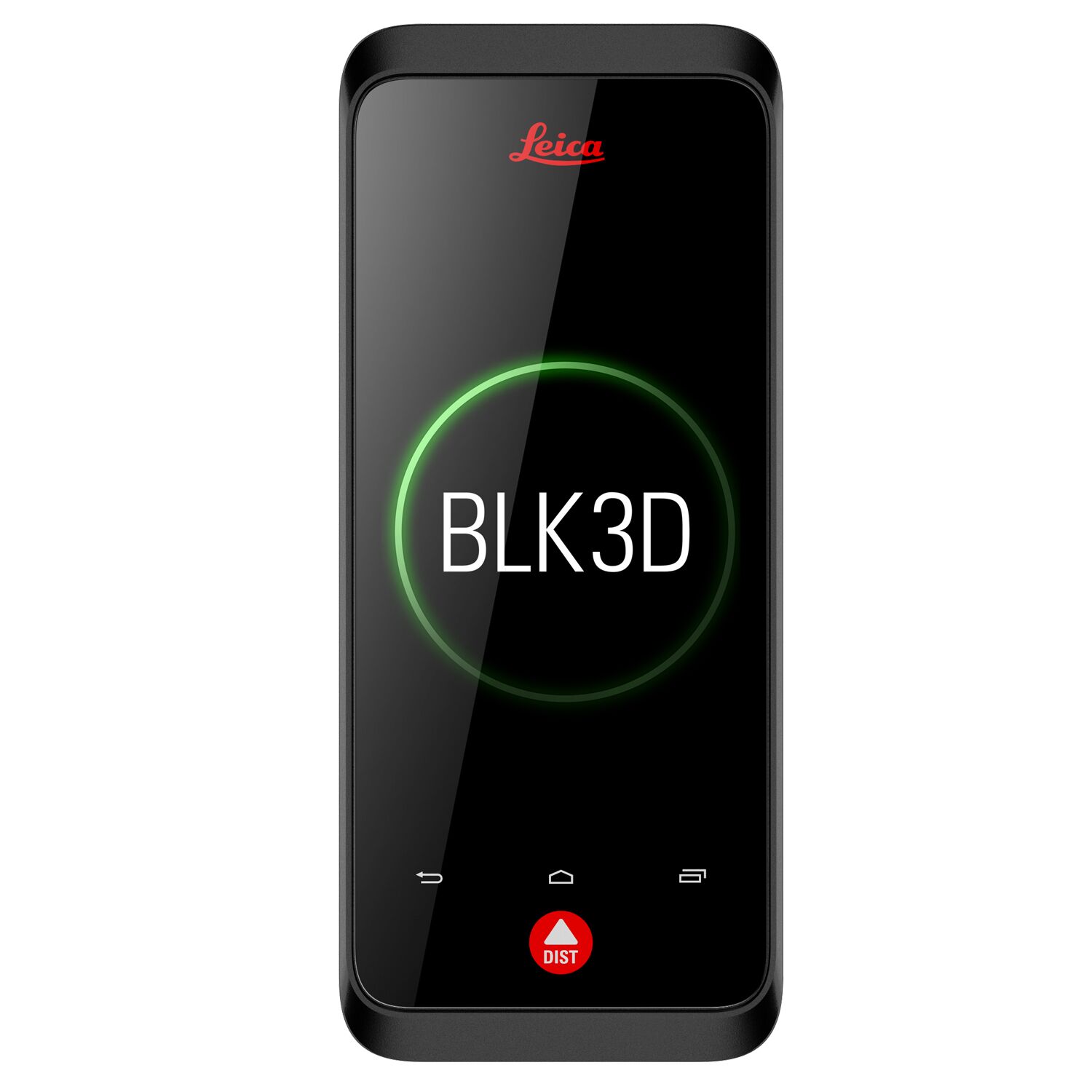

Leica BLK3D Imager

What’s included:
  • BLK3D Lithium-Ion Battery
  • BLK3D Power adapter with USB-C cable
  • BLK3D Quick Guide customer information booklet
  • Microfiber cloth |  Neck strap | Calibration certificate
  • 1x 1 yr BLK3D Mobile Introduction,
    including Sketch & Document 875427
  • 1x 1 yr BLK3D Desktop Introduction
    license, including Organiser, Measure,
    working with plans, 3D Model 875428
CALL FOR PRICE:
0800 292 2188
FREEPHONE
Compare
Description

Real-time, professional, in-picture 3D measurement

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes possible in-picture measurements with professional-grade accuracy in real-time. Every image captured is a complete and precise 3D measurement record.

Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

BLK3D ACCURACY

The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with:

  • EDM accuracy of 1mm
  • 2D in-picture accuracy of +/- 3mm
  • 3D in-picture accuracy of +/- 6mm
Leica BLK3D Imager - features at a glance
Leica BLK3D - Sketch & Document:

Sketch & Document:

Create floorplans and attach measurable images to them. Useful for documenting construction progress over time.

Leica BLK3D Laser

Integrated laser

Use the integrated Laser EDM to add highly accurate measurements to 3D images, or to take stand-alone measurements.

Leica BLK3D - Reality capture

Reality Capture

Capture 3D measurable images.

Leica BLK3D Organiser

Organiser:

Organize projects.

Leica BLK3D - New Project

New project:

Group 3D images and floorplans as a Project.

Leica BLK3D Video Tutorials

Leica BLK3D – How to Create Measurements
Leica BLK3D – How to Capture Reality
Leica BLK3D – How to capture a 3D image
Intro to the Leica BLK3D
Using BLK3D Publisher to share measurable images
Leica BLK3D – Sketch & Document
Leica BLK3D – Smart Room Feature
Leica BLK3D – Case Study

Key Features

  • Take a picture. Measure anything. The BLK3D captures images and places precise measurements at your fingertips.
  • Share images and measurements in multiple formats.
  • Combines calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.
  • Access projects. Anywhere, anytime. Measure in your image – on the handheld imager, on the desktop, on-site or in the office.
  • Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.
  • The BLK3D creates images that contain precise 3D measurements.
  • Capture critical moments throughout the life of a building.„
  • Store. Organize. Share. Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.
Features Popular with
Take a picture. Measure anything! Staircase installers
Share images and measurements in multiple formats. Kitchen fitters
Real-time, in picture hand held 3D measurement. Glass partitions
64 GB (equals 14000 single-shot or 5000 multi-shot 3D images) Shop fitters
Create floorplans and import existing ones. Architects
Store your measurable images on the device and on desktop Surveyors Surveyors. Surveyors
With the BLK3D Software you can share images and measurements with colleagues and customers in multiple formats. Ship builders
Tilt measurement range: 360°
Zoom (magnification) 1×, 2×, 4×, 8×
Software options: BLK3D Mobile (included) | Sketch & Document Option (optional)
Screen: 5.0”, HD 720×1280 LCD multi-touch screen
Stereo camera: pixels: 2 x 10 MP, field of view: 80°, focal length: 4.0 mm, aperture: F3.0
EDM camera: pixels: 2 MP, field of view: 14°

Leica BLK3D Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Leica Geosystems

Product Specification

Product Specification



GENERAL SPECIFICATIONS Dimensions (H x W x D): 180.6 x 77.6 x 27.1 mm
Weight (with rechargeable battery: 480 g
Temperature range: Storage: -25 to 60 °C (-13 to 140 °F)
Operation: -10 to 50 °C (14 to 122 °F)
Charging: 0 to 40 °C (32 to 104 °F)
TECHNOLOGY Operating system: Android 7.1.2 (Nougat)
RAM Memory 4 GB
Screen: 5.0” IPS, HD 720×1280 LCD
Stereo camera: Pixels: 2 x 10 MP, Field of view: 80°
EDM Camera: Pixels: 2 MP, Field of view: 14°
Internal storage: 64 GB (= 14000 single-shot / 5000 multi-shot 3D images)
COMMUNICATION Bluetooth® Smart: v4.1 & v2.1
Wireless LAN
A-GPS & GLONASS
POWER MANAGEMENT Rechargable battery pack Li-ion
AC adapter (input: 100-240 V AC)
Charge time < 3.5 h (with AC adaptor) < 5h (with optional external charger)
Operating time: Typical capture: 4h / 220 multi-shot captures 1 Continuous capture: 2.5 h /1000 single-shot captures 1 Laser measurements: 6.5 h / 9500 laser measurements Auto power off: after 3 h in sleep mode
Remote control (IR) Range 50 m (depending on environment)
Communication Infrared (IR)
Battery 1 AA , 1.5 V
LASER DISTANCE MEASUREMENT Accuracy ± 1.0 mm
Range 250 m
TILT MEASUREMENT Range 360°
3D IMAGE DISTANCE MEASUREMENT 2D in-picture accuracy ± 3 mm
3D in-picture accuracy ± 6 mm
P2P MEASUREMENT WITH DST 360 (OPTIONAL) Working range vertical sensor -64° to > 90°
Accuracy vertical sensor up to ± 0.1°
Working range horizontal sensor 360°
Accuracy horizontal sensor up to ± 0.1°
Tolerance P2P function at distances (combination of sensors & distance measuring) approx. ± 2 mm / 2 m
± 5 mm / 5 m
± 10 mm /10 m
Levelling range ± 5°
SOFTWARE OPTIONS BLK3D Mobile BLK3D Mobile (included) Reality Capture, Laser, Organiser, 3D Image export to pdf & jpg
Sketch & Document Option (optional) Sketch Plan , P2P Measure, Smart Room, Plan export to pdf, jpg, DXF & DWG (2D/3D/raw)
BLK3D Desktop BLK3D Desktop Base (optional) Organiser, Measure, working with plans
3D Model Option (optional) 3D Modelling on 3D Images
Minimum system requirements Windows 7, 8.1, 10 with 64-bit; 6 GB RAM
Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty
