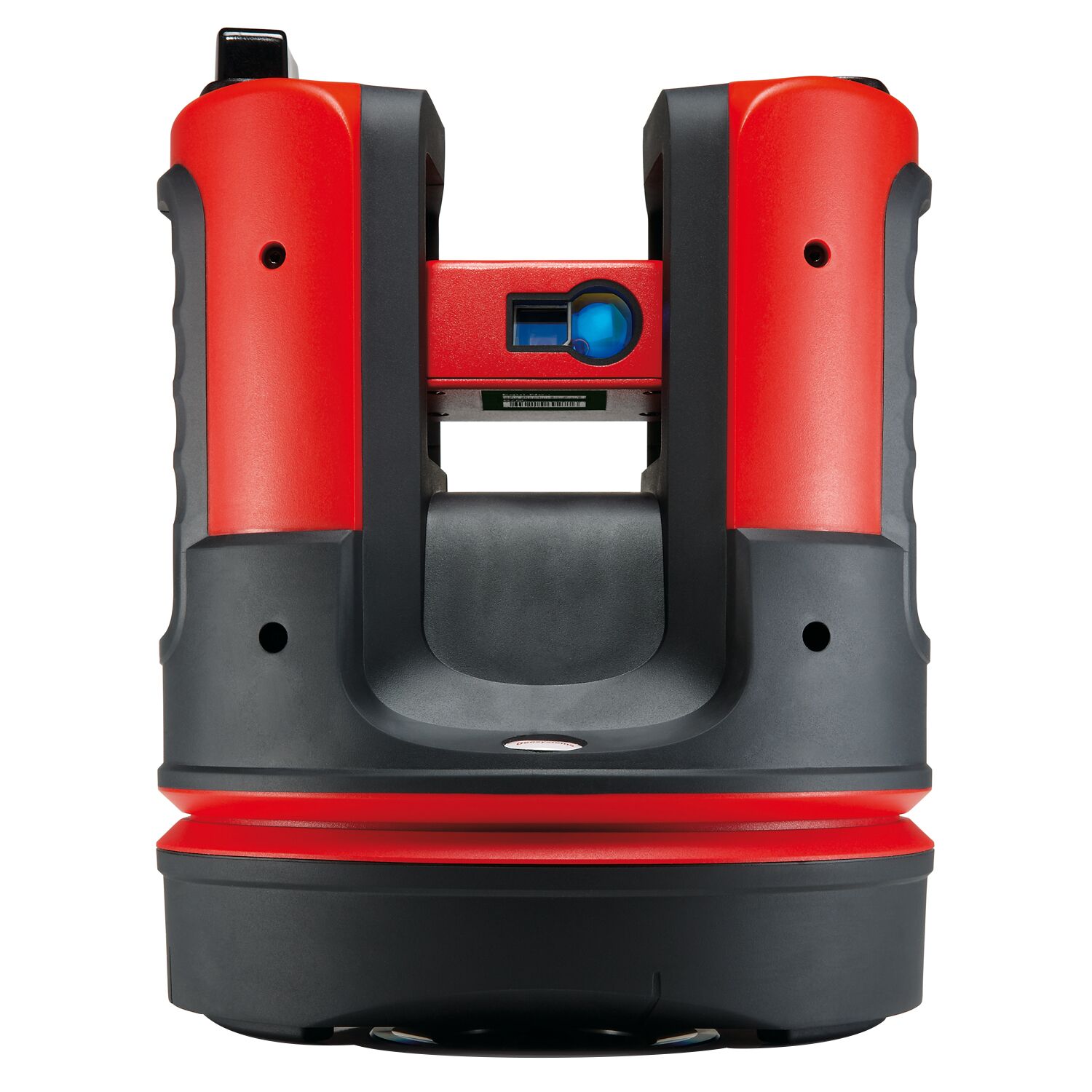

Leica 3D Disto

Supplied with:

  • Leica 3D Disto
  • Remote control RM100
  • Power supply for 3D Disto
  • Power supply for control unit
  • 2x USB cable, USB memory stick
  • Quickstart Guide
  • Leica GZM3 target plate
  • Self-adhesive target points
  • Ruler (for measuring hidden points)
  • License for 3D Disto Software for Windows®
  • (Tablet not included)
Leica 3D Disto - replaced by the Leica iCON
Compare
Description

It can do everything!

Stay in control – in whatever shape of room. Capture and record distances, areas, inclinations, and angles effortlessly, even for inaccessible points. Forgotten measurements and handwriting errors are things of the past. Whether in fully automatic or manual mode: you can measure complete rooms, walls, windows, structural connections or stairs – from only one station point.

A highly accurate combination of distance and angle measurements determine the precise position of each point targeted with the integral camera and captured with the laser beam, the Leica 3D Disto can do everything. Curved surfaces, skew walls, unreachable places – measure like a professional.

Supplied with:

  • Leica 3D Disto
  • Remote control RM100
  • Power supply for 3D Disto
  • Power supply for control unit
  • 2x USB cable, USB memory stick
  • Quickstart Guide
  • Leica GZM3 target plate
  • Self-adhesive target points
  • Ruler (for measuring hidden points)
  • License for 3D Disto Software for Windows®
  • Tablet not included.
Leica 3D Disto - features at a glance
3D Disto scanning & measurement

Scanning & measurement

With the Leica 3D Disto you can measure everything from simple distances to complicated spaces on site to obtain all the data you require – either automatically or manually.

3D Disto saves time

Maximum assembly time reduction

With the optimised workflow from scanning to production you can minimise expensive assembly times and meet high optical component fitting accuracy demands with ease.

Simple data export

All recorded data is collected for each project and exported by simply pressing a button. The software automatically generates the different document formats that you need for subsequent processing. You can therefore transfer DWG or DXF files, images, calculation or text data to your computer workstation at the office as required.

With Leica 3D Software for windows

3D Disto software for Windows®

Our intuitive software for your Windows device lets you control the Leica 3D Disto and see directly what you have measured – either as a live image from the integrated camera or as a 3D model.

3D Disto software in the office

Exact planning in the office

The  Leica 3D Disto supplies high-precision data  from which you can produce projects in your customary software environment with maximum possible precision!

Simple data export with Leica software for windows

Leica DISTO S910 Video Tutorials

Leica 3D Disto – Projection function
Leica 3D Disto – Room Scan
Leica 3D Disto – Measuring Slope Area
Leica 3D Disto – Relocation
Leica 3D Disto software version 4 for Windows – whats new?

Key Features

  • Measure plan position, height & distance,in all 3 spatial axes
  • Intuitive user guidance from Assistants
  • „„Measure from one station – every visible point can be measured by targeting with the visible laser dot – without the need to walk to the target
  • As-built records of ceiling, floor and roof surfaces, volumes, inclination, falls, height differences, angles
  • Plumbing of points, parallel offsetting of axis, levelling, transferring levels from wall to wall. Forget spirit level and measuring tapes!
  • Realtime display of measurements as drawings on the screen
  • Positionally accurate representation of the measured points in the camera display„
  • Recording information in the form of standard tables, photos, DXF files, text files at the press of a button
Features Popular with
Line & surface scans Staircase installers
Measure to difficult-to-reach points, such as roof edges Kitchen fitters
Digital measurement with immediate results Glass partitions
Cable-free operation Interior designers
Digital pointfinder Shop fitters
Graphic 2D or 3D display Architects
Marking heights, plumb points & parallel lines Surveyors
Import of own data for simple staking out Ship builders
Changing the position with photo backup
Export formats: DXF (2D, 3D and overview plan), JPG, CSV & TXT
Data import & export on PC & USB stick
Remote control measurements
Pocket calculator
Additional information
Brand

Leica DISTO

,

Leica Geosystems

Product Specification

Product Specification

Goniometer (Hz/V) Range of measurement Horizontal 360°; vertical 250°
Accuracy 5˝, equates to 1.2 mm @ 50 m
Laser distance meter Range of measurement 0.5 – 50 m
Digital pointfinder Self-levelling range ± 3°
10˝, equates to 2.5 mm @ 50 m
Zoom (magnification) 1×, 2×, 4×, 8×
Operation Keys / user interface:
3D Disto: 1 On / Off buttonSurveyors
Memory Flash memory 32 GB
Interfaces
3D Disto: US B type B, power supply power pack
Communication Cable: USB, Micro-B USB, and type A WLAN
Wireless SD card, range: 50 m (depending on environment)
Data format Import DXF; export DXF, DWG, TXT, CSV, JPG
Remote control (IR) Range 50 m (depending on environment)
Communication Infrared (IR)
Battery 1 AA , 1.5 V
Environmental conditions Water and dust protection 3D Disto: IP54 (IEC 60529)
Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty

Summary of Leica DISTO Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

3 year warrantyLEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this DISTO Product will be free from defects in workmanship and materials, under normal use three (3) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product. The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products. For full details contact Leica Geosystems, or go to www.disto.com

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

HOW TO REGISTER YOUR PRODUCT

To claim your 3 year warranty you can register your DISTO on the Leica Geosystems website. Register your product here: https://myworld.leica-geosystems.com/irj/portal
