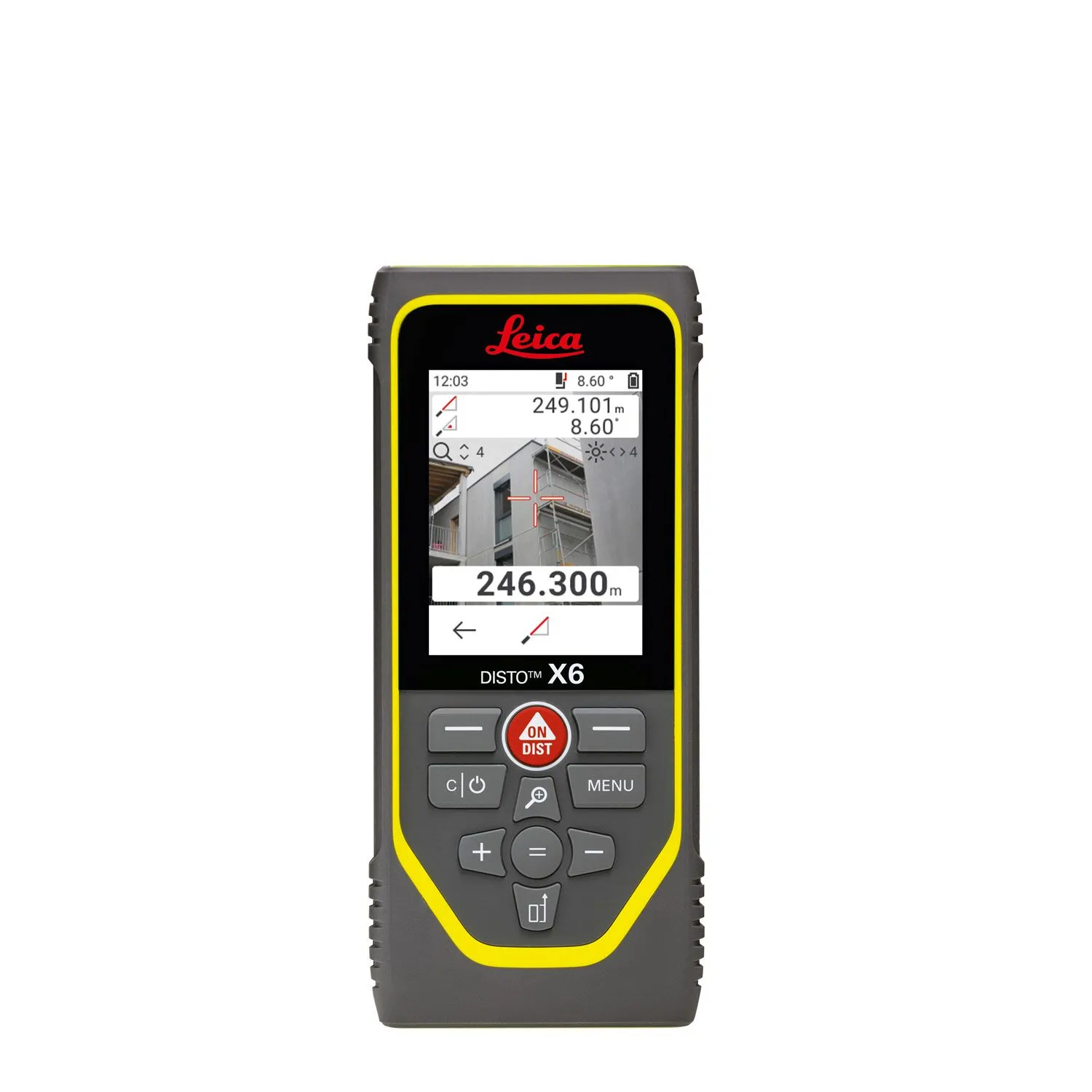

Leica DISTO X6 R

£540.00 Price incl. VAT: £648.00

  • Range: 250m | Accuracy: ± 1 mm
  • Colour touchscreen with Digital Pointfinder 4x zoom
  • IP65: waterproof and drop tested from 2 meters
  • Rechargeable Li-ion battery
  • Measure by Gesture* or DIST Key* (* NEW features)
  • Bluetooth® Smart – FREE Apps Leica DISTO™ sketch & Transfer
  • 360° tilt measurements

Supplied with:

  • Leica DISTO X6 R Laser Measure
  • DISTO pouch | USB Cable & Hand loop
  • Calibration Certificate Silver
  • 3 year warranty
Compare
Description

Extremely robust outdoor laser distance meter with 3D capability

The best ever Leica Disto, welcome the Leica DISTO X6. Designed with the highest level of durability, IP65 – Waterproof, Dustproof, impact resistant touch screen and a 2 Metre durability drop test winner.
A new crystal-clear, touch screen display, it is perfect for using the digital point finder to target objects upto 250 metres outside.

The high speed touch screen, enables the use to swipe, zoom, select and trigger measurements all from the screen. In addition 2 New methods to trigger measurements have been added to the Disto X6. The easy to use side button and automatic rotating display and the new Gesture measure method, simply move your hand across the laser and the measurement is triggered – simple and accurate.

Packed with innovative functions: picture width measuring, indirect heights, ground profiling and height calculations, room scan.

Bluetooth enabled – link to the free Leica Disto Plan app, transfer measurements into excel or any application running on your tablet PC.

Add the P2P adapter, now you can measure anything, anywhere in 3D. Capture DXF files and send directly to CAD.

KEY FEATURES

  • Outdoor laser | Digital pointfinder
  • Range: 250m | Accuracy: ± 1 mm
  • Colour touchscreen with Digital Pointfinder 4x zoom
  • Robust according to IP65 and drop tested from 2 meters
  • Indirect height measurement, 360° tilt sensor, Measuring units: m, ft, in
  • Trigger measurements with a gesture – for max accuracy
  • Bluetooth® Smart, FREE App Leica DISTO™ sketch
  • Area & volume function | Addition/subtraction
  • Smart horizontal mode | Pythagoras function
  • Stake-out function | Height tracking
  • Inclination tracking | Sloped objects | Trapezium
  • Distance measurement | Min/max measurement
Leica DISTO X6-R - features at a glance

READY FOR 3D MEASUREMENTS?

The Leica DISTO X6 can be extended with the Leica DST 360-X tripod adapter to get a solid measuring station. This allows 2D and 3D DXF data to be captured for further processing in the DISTO Plan app or any CAD software.

Leica DISTO X6 R P2P Pack

Use the DISTO X6 R P2P Pack for highly accurate interior & exterior Point-to-Point measurements. In addition to the X6 R the P2P Pack INCLUDES:

  • DST 360-X Adapter | TRI 120 Tripod | GZM 3 Target Plate | Hard Case
  • Quick Start with QR code link to online manual, Calibration Certificate Silver

Leica DISTO X6 R - FEATURES

Measure with a gesture

No need to touch the DISTO: Carefully place the laser dot or crosshairs of the Pointfinder Camera on target & simply wave a hand in front of the device to briefly interrupt the beam. When the DISTO senses this pulse, it triggers the measurement.

Measure outdoors up to 250m

At 250m (820ft) the range of the DISTO X6 exceeds the ability of the human eye to see the laser point, which makes it hard to take a measurement. The solution is a 4x zoom Digital Pointfinder camera. Place the crosshairs on your measuring point and measure with confidence.

Job Site Tough

Just because it works with CAD doesn’t mean the X6 can’t take a hit. This DISTO is both smart & tough, drop tested 2m. Wash it off with a hose: This with IP65 DISTO is protected from water & dust.

DISTO Plan App

Leica DISTO Plan App

Document Measurements Digitally

Leica DISTO X6 R Video Tutorials

Getting to know your DISTO X6 R
DISTO X6-R – How to measure Point to Point
DISTO X6-R – How to measure Point to Line
DISTO X6 R – How to measure 3D DXF data
DISTO X6 R – How to measure 3D & relocate

Leica DISTO: How to Measure Outdoors

How to use the digital pointfinder

Indoors or generally in favourable lighting conditions, the red laser dot is very clearly visible so that the object can be easily targeted. In bright outdoor areas, however, or even in bright sunlight, the laser dot is no longer visible. The laser distance meter can still measure without any problems. To aim, however, you now need the Pointfinder – a camera that shows you the target exactly in the crosshairs on the display.

Key Features

  • Indoor /outdoor laser | Digital pointfinder
  • Fast start-up time
  • Range: 250m | Accuracy: ± 1 mm
  • Bright and clear 2.8” IPS touchscreen with scratch-proof lens
  • 360° tilt sensor, Measuring units: m, ft, in
  • Color display with Pointfinder 4x zoom
  • Trigger measurements with a gesture – for max accuracy
  • Indirect height measurement, 360° tilt sensor
  • DIST key on the side for even more intuitive measurements
  • Robust according to IP65 and drop tested from 2 meters
  • Trigger measurements with gestures
  • Memory for 300 reports
  • Li-Ion rechargeable battery
  • USB-C charging and download of data
  • Keyboard simulating data-transfer via Bluetooth®
  • Bluetooth® 5.0 Technology for error-free data transfer
  • Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
  • Compatible with DST 360-X adapter to enable P2P measurements

Specifications

Accuracy with favourable conditions *

1.0 mm / 1/16″ ***

Accuracy with unfavourable conditions **

2.0 mm / 1/8″ ***

Range with favourable conditions *

0.05 – 250 m / 0.07 – 820 ft ***

Range with unfavourable conditions **

0.05 – 150 m / 0.07 – 500 ft ***

Smallest unit displayed

0.1 mm / 1/32 in

X-Range Power Technology

Yes

Laser

class 2, 635 nm, <1 mW

Digital Pointfinder with 4-fold zoom

Yes

Tilt measuring range ****

360°

Tilt measuring tolerance

± 0.2°

ø laser point | at distances

6 / 30 / 60 mm | 10 / 50 / 100 m

Protection class

IP65 (dust tight and jet water protected)
drop tested from 2 m height

Auto. laser switch off after

90 s

Auto. power switch off after

180 s

Memory

up to 300 reports

Bluetooth® Smart

Bluetooth® v5.0

Range of Bluetooth® Smart

up to 10 m

Battery durability (Li-Ion 2 000 mAh)

up to 4’000 measurements
up to 8 hours operation time

Dimension (H x D x W)

154 x 68 x 25 mm

Weight (with batteries)

230 g

Temperature range storage | operation

-25 to 70 °C | -10 to 50 °C

* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.

** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.

*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.

**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.

Leica DISTO X6 R Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format
