Leica DISTO D5 R Pro Pack Original price was: £720.00.Current price is: £632.50. Price incl. VAT: £759.00

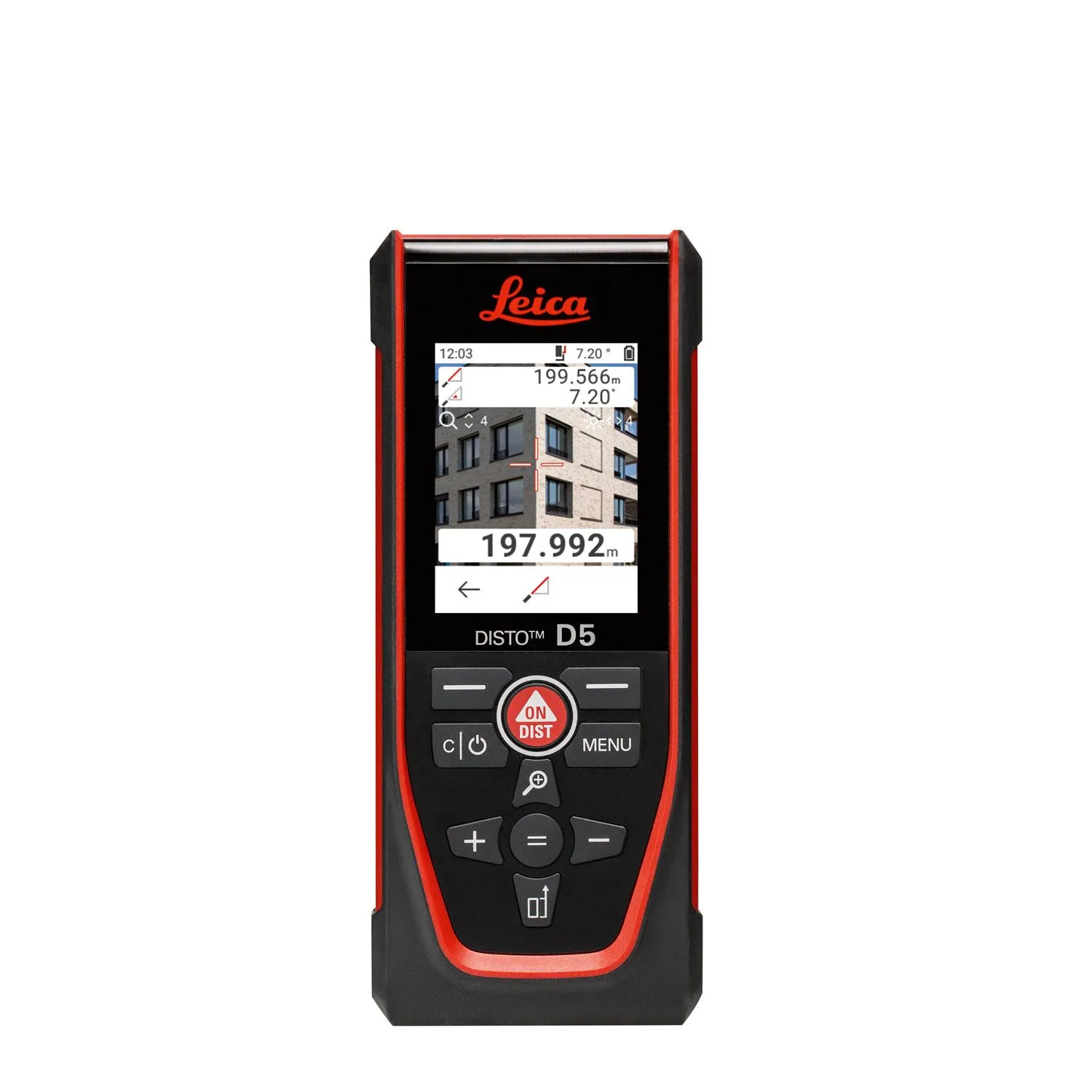

Leica DISTO D5 R

£435.00 Price incl. VAT: £522.00

  • Range: 200m | Accuracy: ± 1 mm
  • Colour display with Digital Pointfinder 4x zoom
  • Rechargeable Li-ion battery
  • Measure by Gesture* or DIST Key* (* NEW features)
  • Bluetooth® Smart – FREE Apps Leica DISTO™ sketch & Transfer
  • IP54: dust & splash water protected
  • Indirect Height Measurement | 360° Tilt Sensor
  • Smart Horizontal Mode | Smart Room Measurement

Supplied with:

  • DISTO pouch, USB Cable & Hand loop
  • Calibration Certificate Silver
  • 3 year warranty
Compare
Description

Outdoor laser distance measuring made easy

With the digital on screen Pointfinder measuring outside, even in bright sunshine and at very long distances is easy. Both the target and the measurement results can be seen very clearly on the large IPS display(iPhone quality). Avoid moving the device for accuracy when measuring using the new Gesture measure feature, move hand across laser beam and measurement is triggered…. How cool is that!

So many features to help with all manner of measuring applications, Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently.

Measured data can then be Blue-toothed to the DISTO Plan app or individual templates, e.g. in Excel, email or any application to support an efficient and error-free digital workflow.

KEY FEATURES

  • Outdoor laser | Digital pointfinder
  • Range: 200m | Accuracy: ± 1 mm
  • Bluetooth® Smart, FREE App Leica DISTO™ sketch
  • Colour display with Digital Pointfinder 4x zoom
  • Multi-functional, IP54 (dust & splash water protected)
  • Trigger measurements with a gesture – for max accuracy
  • Indirect height measurement, 360° tilt sensor
  • Area & volume function | Addition/subtraction
  • Indirect Height Measurement | 360° Tilt Sensor
  • Smart Horizontal Mode | Smart Room Measurement
Leica DISTO D5-R - features

READY FOR P2P MEASUREMENTS?

The Leica DISTO D5-R can be extended with the FTA 360 tripod adapter. This easy and precise targeting to capture data for further processing in the DISTO Plan app.

Leica DISTO D5 R Pro Pack

Use the DISTO D5 R Pro Pack for highly accurate interior & exterior measurements. In addition to the D5 R the Pro Pack INCLUDES:

  • FTA 360 Adapter | TRI 75 Tripod | Hard Case
  • Quick Start with QR code link to online manual, Calibration Certificate Silver

Leica DISTO D5 R - FEATURES

Measure with a gesture

No need to touch the DISTO: Carefully place the laser dot or crosshairs of the Pointfinder Camera on target & simply wave a hand in front of the device to briefly interrupt the beam. When the DISTO senses this pulse, it triggers the measurement.

Multi-functional endpiece

The Multi-functional endpiece folds out from the back of the DISTO and automatically sets the measuring point to either the rear of the DISTO or the tip of the extended endpiece.

Bluetooth Keyboard Mode

In this mode, your device sees the DISTO as a Bluetooth® keyboard. Press send to deliver measured values to the cursor in any program.

DISTO Plan App

Leica DISTO Plan App

Document Measurements Digitally

Leica DISTO D5 R Video Tutorials

Getting to know your DISTO D5 R
DISTO D5 R – How to measure long distances

Leica DISTO: How to Measure Outdoors

How to use the digital pointfinder

Indoors or generally in favourable lighting conditions, the red laser dot is very clearly visible so that the object can be easily targeted. In bright outdoor areas, however, or even in bright sunlight, the laser dot is no longer visible. The laser distance meter can still measure without any problems. To aim, however, you now need the Pointfinder – a camera that shows you the target exactly in the crosshairs on the display.

Key Features

  • Range up to 200 m
  • ± 1.0 mm accuracy, 0.1 mm resolution
  • Measuring slopes
  • Smart Horizontal Mode
  • Fast start-up time
  • Foldable end-piece with automatic detection
  • Bright and clear 2.4” IPS display with scratch-proof lens
  • Trigger measurements with gestures
  • Memory for 50 measurements
  • Li-Ion rechargeable battery
  • USB-C charging
  • Keyboard Mode, simulating data-transfer via Bluetooth®
  • Bluetooth® 5.0 Technology for error-free data transfer
  • Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)

Specifications

Accuracy with favourable conditions * 1.0 mm / 1/16″ ***
Accuracy with unfavourable conditions ** 2.0 mm / 1/8″ ***
Range with favourable conditions * 0.05 – 200 m / 0.07 – 660 ft ***
Range with unfavourable conditions ** 0.05 – 120 m / 0.07 – 400 ft ***
Smallest unit displayed 0.1 mm / 1/32 in
X-Range Power Technology yes
Laser Class 2 635 nm, <1 mW
Digital Pointfinder with 4-fold zoom yes
Tilt measuring range **** 360°
Tilt measuring tolerance ± 0.2°
ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m
Protection class IP54 (dust- and splash water protected)
Auto. laser switch off after 90 s
Auto. power switch off after 180 s
Bluetooth® Smart Bluetooth® v5.0
Range of Bluetooth® up to 10 m
Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements
up to 10 hours operation time
Dimension (H x D x W) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in
Weight (with batteries) 180 g / 6.35 oz
Temperature range storage | operation -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F

Leica DISTO D5 R Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format
