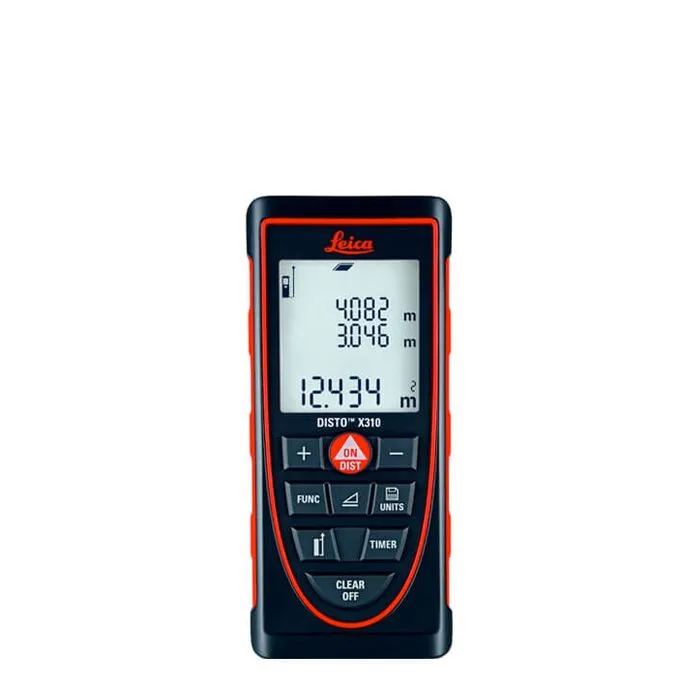

Leica DISTO X310

  • Indoor Range: 120m
  • Accuracy: ± 1 mm
  • IP65: Waterproof
  • It’s extremely tough!
  • Indirect height measurement, 360° tilt sensor

Supplied with:

  • DISTO pouch, batteries & strap
  • User manual
  • 3 year warranty

 DISCONTINUED

The X310 has been replaced
by the DISTO X3 >>

Compare
Description

Extremely Tough

The Leica DISTO X310 is job site tough! It is the only laser distance meter to be dust-tight and protected against water jets – to IP65. In addition, it passes drop tests of up to 2 m height. Guarantees reliable measurements, even under the harshest conditions.

Robust rubber casing – drop tested from up to 2 m.

Waterproof IP65 – fully sealed against water and dust – can even be cleaned under running water.

Built in 360° angle measure – calculate indirect heights and distances between 2 points.

Smart Horizontal Mode – accurately determine horizontal distance around obstructions.

Supplied with:

  • DISTO pouch, batteries & strap
  • User manual
  • 3 year warranty
Leica DISTO X310 - features at a glance
Leica DISTO X310 - extremely robust laser distance measure

5 Reasons to purchase the Leica DISTO X310
  • Robust: No more worrying about dropping the laser measure. It is small but tough. Special tests ensure that the housing and Internal measuring components are made from durable materials and housed in a solid framework preventing accidental damage if dropped or bumped. The rubber housing is not only easy to hold, but is also fully waterproof, so whatever the conditions the Leica DISTO X310 is the laser measure to choose.
  • Speed of measuring: The new Leica power range technology ensures that the maximum power is achieved for the laser ensuring fast and accurate measuring of both light and dark surfaces. The Leica Smart Levelling function automatically corrects measuring errors- adjusting the measurement to give true horizontal distances.
  • Accuracy: Multiple frequencies of laser light combine to offer less than 1mm accuracy over distances up to 120 metres. Calibrated for the life of the Leica DISTO to the ISO Norm standard for laser measuring devices. You can be sure that the Leica DISTO X310 is always accurate.
  • Material take-off: New features in the DISTO X310 makes painting areas, perimeter room lengths, adding and subtracting areas very easy.
  • Measurements in difficult locations: The multifunctional end-piece extends for measurements into corners and automatically re-calibrates to the extended position. The Point to point Pythagoras function enable measurements in hard to reach areas and the Smart Leveling function enables you to measure over obstacles to obtain an accurate horizontal distance.

Leica DISTO X310 Video Tutorials

Pythagoras Function
Smart Horizontal Mode
Height Tracking
Stake Out Function

Key Features

  • Min/max measurement
  • Continuous measurement
  • Stake out function
  • Addition/subtraction
  • Area/volume
  • Painter function
  • Pythagoras 3 points, partial height
  • Smart Horizontal Mode
  • Height tracking
Features Popular with
Range: 0.2 – 120m Estate Agents
±1 mm accuracy Home inspectors
Measuring units: m, ft, in Property Developers
3-line illuminated display Estimators
Multifunctional end-piece Property tradesmen
IP65 – waterproof & dust-tight Architects (interior)
Recall of last 20 measurements Window Fitters

Leica DISTO X310 Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Leica DISTO

,

Leica Geosystems

Product Specification

Product Specification

Accuracy: ± 1 mm
Range: 0.2 – 120 m
Laser class 2
Laser type 635 nm, <1 mW
ø laser point | at distances 10, 50, 100 m 6, 30, 60 mm
Protection class IP65 – water jet protection & dust-tight
Batteries (2 x AAA) up to 5000
Dimensions (HxDxW) 122 × 55 × 31 mm
Weight (with batteries) 155 g
Memory 20 Displays
Multifunctional end-piece With automatic recognition
Warranty

Warranty

Leica Sales & Warranty Centre

3 Year Manufacturer’s Warranty

Summary of Leica DISTO Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

3 year warrantyLEICA Geosystems AG (LEICA Geosystems), warrants to the original end user (Customer) that this DISTO Product will be free from defects in workmanship and materials, under normal use three (3) years shall apply, and (ii) batteries for which ninety (90) days shall apply, unless such warranty period has been extended by LEICA Geosystems, and provided any and all operating and maintenance instructions are strictly respected, in particular in case of extreme and/or continuous applications/use of the Product.

The warranty period begins on the proved purchase date (or if applicable, date of delivery or date of acceptance report). LEICA Geosystems sole obligation under this express warranty shall be, at LEICA Geosystems sole option and expense, to replace or repair the Product or part, or refund the purchase price paid for the Product. LEICA Geosystems warrants any repaired or replaced Product or part for a period of ninety (90) days from shipment, or through the end of the original warranty, whichever is longer. All Products or parts that are replaced become the property of LEICA Geosystems. This express warranty does neither cover consumables, such as reflectors, bulbs and fuses, nor third party products.
For full details contact Leica Geosystems, or go to www.disto.com/warranty

Limitation of liability

Leica Geosystems also excludes any liability, whether based in contract or tort (including negligence), for incidental, consequential, indirect, special, or punitive damages of any kind, or costs of procurement of substitute products by customer, or for the loss of revenue or profits, loss of business, loss of information or data, or other information or financial loss arising out of or in consequence with the sale, installation, maintenance, use, performance, failure, or interruption of this product, even if Leica Geosystems or its distributors have been advised of the possibility of such damages, and limits its liability to replacement, repair, or refund of the purchase price paid, at Leica Geosystems option. This limitation of liability for damages will not be affected if any remedy provided herein shall fail of its essential purpose.

HOW TO REGISTER YOUR PRODUCT

To claim your 3 year warranty you can register your DISTO on the Leica Geosystems website. The warranty extension is valid only if the device has been registered with www.disto.com/warranty  within 8 weeks of purchase
