Leica Rugby CLA + CLX 700

Dual grade high precision digital laser

  • Fully automatic, horizontal, vertical
  • Dual grade dial-in slopes in X & Y axes
  • Driveway, ramps, roads, car parks
CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE
EQUIVALENT TO THE RUGBY 810. IT COMES FULLY CALIBRATED & GUARANTEED FOR ‘MILITARY GRADE’ MIL-STD-810G. WITH HIGH PRECISION ACCURACY & IP68 FULLY WATERPROOF RATING.

Supplied with:

  • Rugby CLA + CLX 700
  • Rugby Combo Remote & Receiver
  • Li-ion Battery Pack & Charger
  • Hard Carry Case | User Manual
  • Calibration Certificate
  • Leica Protect Warranty
Compare
Description

Dual grade, digital, heavy construction laser

Equivalent to the Rugby 880. CLA is our Construction Laser All Rounder for horizontal and fully automatic grade applications. With one-button operation, designed for simplicity of use. The settings are fixed, and the laser is directed remotely by the Leica Geosystems combo receiver/controller. The status, speed, and appropriate grade on the laser unit are set on the Leica Combo. Speed of rotation can be changed from a distance in real time, while the crew are on site; and, as settings cannot be changed on the laser unit itself, the risk of errors, costing time and money, is minimised.

The most reliable performance in dual slope applications addition is achieved by our CLX 700 software upgrade. This gives +-15% fully automatic grade functionality in second axis with a dial-in option.

Supplied with:

  • Rugby CLA + CLX 700 – Art no. 6012284
  • Rugby Combo – Art no. 864848
  • Li-ion Battery Pack & Charger
  • Hard Carry Case | User Manual
  • Calibration Certificate
  • Leica Protect Warranty
CALL FOR UPGRADE & PRICE OPTIONS:
0800 292 2188
FREEPHONE
Leica Rugby CLA - Dual Grade Laser

Leica Rugby CLA/CLH Video Tutorials

Introduction to the Series – Leica Rugby CLA/CLH
How to do Slope Catching – Leica Rugby CLA
Leica Rugby CLA – How to do Scan Catching
Leica Rugby CLA – How to change grades (dial in grade)

Features of the Leica Rugby CLA + CLX 700

Rugby CLA CLX700 - Dual Grade
  • Fully-automatic dual grade, dial-in slopes in X & Y axes
  • Range: 1350m diameter ( with Combo, RE 140/160 )
  • Grade capability* (X/Y Axes) 15%
  • Self-levelling accuracy** ± 1.5 mm at 30 m
  • Self-levelling range ± 6°
  • Environmental standard IP68 waterproof

Its robust design secures measurement stability & accuracy for your daily tasks. The handle is fixed to the base with special sockets that feature high rigidity & provide a strong mount to the base. The upgrade options allow for maximised performance in all levelling applications.

Additional information
Brand

Leica Geosystems

Product Specification

Product Specification

Leica Rugby CLH Leica Rugby CLA Leica Rugby CLI Leica Rugby CLH
Technical data Rugby CLH Rugby CLA Rugby CLI LEICA COMBO (RECEIVER/REMOTE)

Warranty

5Y/2Y knockdown

5Y/2Y knockdown

5Y/2Y knockdown

Warranty 3Y

Grade capability* (X/Y Axes)

8%

15%

15%

Anti-Strobe Yes

Self-levelling accuracy**

± 1.5 mm at 30 m

± 1.5 mm at 30 m

± 1.5 mm at 30 m

Working range – Receiver 1350 m (diameter)

Self-levelling range

± 6°

± 6°

± 6°

Working range – Remote 600 m (diameter)

Operating range with Combo, RE 140/160

1350 m diameter

1350 m diameter

1350 m diameter

Detection window 120 mm

Remote range

600 m diameter

600 m diameter

600 m diameter

Digital read out / Offset /
Variable detection window length
Yes

Laser class

1

2

1

Audio volumes 4 (including mute)

Environmental standard

IP68

IP68

IP68

Detection bandwidth 0.5, 1, 2, 5 mm

Operating temperature

-20 °C to +50 °C

-20 °C to +50 °C

-20 °C to +50 °C

Environmental standard IP67

Storage temperature

-40 °C to +70 °C

-40 °C to +70 °C

-40 °C to +70 °C

Batteries (li-ion) / Battery
operating time*
Li-Ion 3.7V / 50 h

Rotation speed

10, 15, 20 RPS

0, 2, 5, 10, 15, 20 RPS

10, 15, 20 RPS

Battery charging 5 h (full charge) 1 h (fast
charge – 8 h operating)

Batteries

Li-Ion

Li-Ion

Li-Ion

Rechargeable battery /
charging option with power
bank (USB-C)
Yes

Battery operating time**

50 h

50 h

50 h

Operating temperature -20°C to +50°C

Battery charging

5 h (full charge)
1 h fast charge = 8 h
operating

5 h (full charge)
1 h fast charge = 8 h
operating

5 h (full charge)
1 h fast charge = 8 h
operating

Dimensions (H × W × D) 205 x 86 x 32 mm

Dimensions (H × W × D)

230 x 296 x 212 mm

230 x 296 x 212 mm

230 x 296 x 212 mm

Weight with batteries 0.4 Kg

Weight with batteries

3.8 Kg

3.9 Kg

3.9 Kg

*Rugby CLH grade capability only with software update. Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality.

Technical data Software Versions Equivalent Old Spec

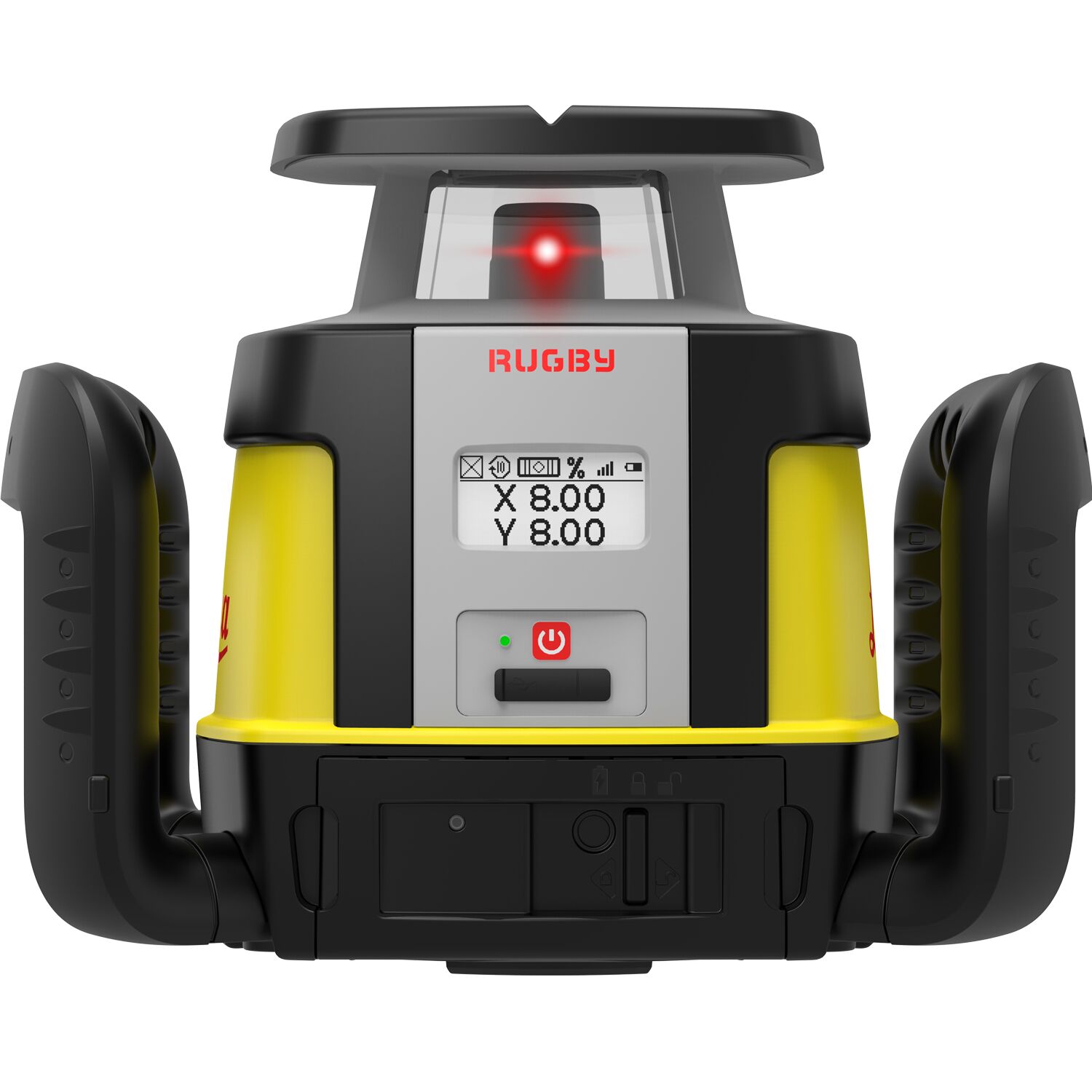

Leica Rugby CLH

Rugby CLH Laser

CLH – Basic

Rugby 810
Horizontal Only
CLX200/20 Rugby 820
Horizontal Manual Grade
CLX300/30 Rugby 670
Digital Single Grade
CLX400/40 Leica Rugby CLH Laser
Digital Dual Grade

Leica Rugby CLA

Rugby CLA Laser

CLA – Basic

Rugby 810
Horizontal Only
CLX250/25 Rugby 820
Horizontal Manual Grade
CLX500/50 Rugby 840
Horizontal & Vertical Manual Grade ‘X’ & ‘Y’ Axis
CLX600/60 Rugby 870
Horizontal Digital Single Grade
CLX700/70 Rugby 880
Horizontal Digital Dual Grade
CLX700/70 Rugby 420
Horizontal Digital Dual Grade – Long Range
Warranty

Warranty

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest  jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

  • Lifetime manufacturer’s warranty
  • Certified quality
  • No cost period for repair and service
  • Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty and Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements.  We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
