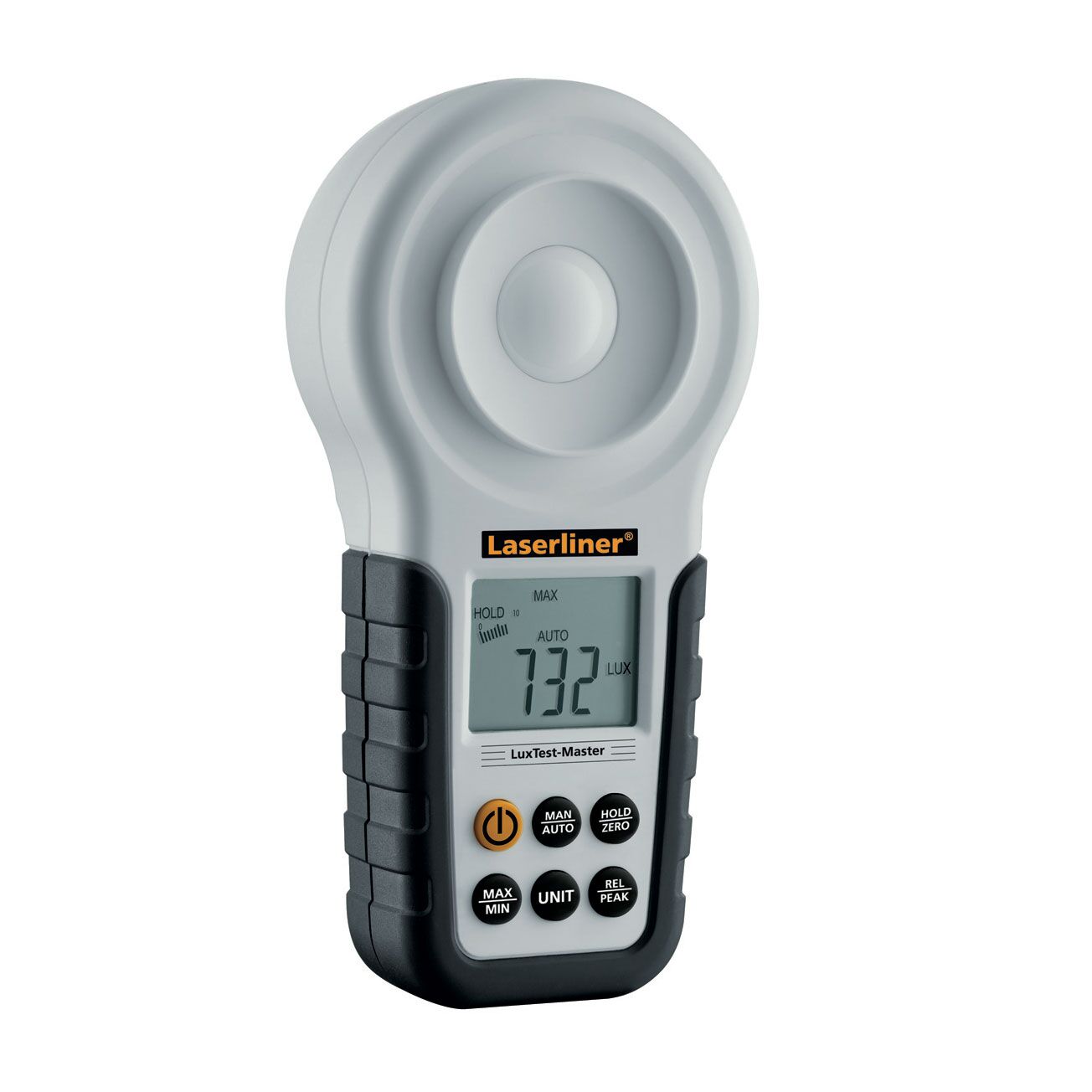

Laserliner LuxTest-Master

Professional lighting intensity meter for use in offices, public buildings and industry, with sensitive photodiode for wide-angle light measurement.

Sensitive photodiode
Relative measurement function
Auto/manual range change over
Peak function
Zeroing function
Measurement variables
Min/Max display
HOLD function
1/4″ tripod connection

DISCONTINUED
0800 292 2188
CALL US FOR ADVICE

Add to Wishlist

Add to compare

Add to wishlist

Compare

SKU: 082.130A Categories: Electrical & Test Meters, Light Meters Tags: DISCONTINUED, Light intensity meter, Light meter, Measure lighting intensity

Description

Professional lighting intensity measuring instrument

Measurement of lighting intensity in workplaces, offices, public buildings and industry
Sensitive photodiode with cosine correction for wide-angle light measurement
Relative measurement function for reference and comparison measurement
Peak function for registering fast changes in light levels
Automatic and manual range changeover
Zeroing function to adjust the sensor curve
Measurement variables: Lux (lm/m2), foot candle (lm/ft2)
Min/Max display
Hold function: the current measured value is held in the display
1/4“ tripod connection for applications using tripods

Supplied with:

LuxTest-Master
Hard Carry Case

1 x 9V battery
4 Year Warranty

Laserliner LuxTest-Master - illustrations

Measurement of lighting intensity

In workplaces, offices, public buildings and industry

Hold function

The current measured value is held in the display

Measurement variables

Lux (lm/m2), foot candle (lm/ft2)

Laserliner LuxTest-Master - LCD & Protective Cover

Clear illuminated LCD

And removable protective cover

Key Features

Measurement of lighting intensity
1/4“ tripod connection
Min/Max display
Relative measurement function

Features		Popular with
Measuring range:	20,00 Lux; 200,0 Lux; 2.000 Lux; 20.000 Lux; 200.000 Lux	Industrial
Accuracy:	± 3% (reference light bulb at 2854K) ± 6% (visible light sources)	Environmental

Laserliner
LuxTest-Master
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner LuxTest-Master – Data Sheet

Laserliner LuxTest-Master – Manual

Additional information

Brand	Laserliner

Product Specification

	LuxTest-Master
MEASURING RANGE:	20,00 Lux; 200,0 Lux; 2.000 Lux; 20.000 Lux; 200.000 Lux
ACCURACY:	± 3% (reference light bulb at 2854K) ± 6% (visible light sources)
COSINE ANGULAR DEVIATION:	± 2% (30°) ± 6% (60°)
SENSOR:	Silicon photodiode
SPECTRAL RANGE:	320 nm…730 nm
BATTERY TYPE:	1 x 9V 6F22
DIMENSIONS(W x H x D):	89 x 190 x 42,5 mm
WEIGHT:	0.2 kg
