Click to enlarge

Laserliner SoundTest-Master - Hard Carry Case

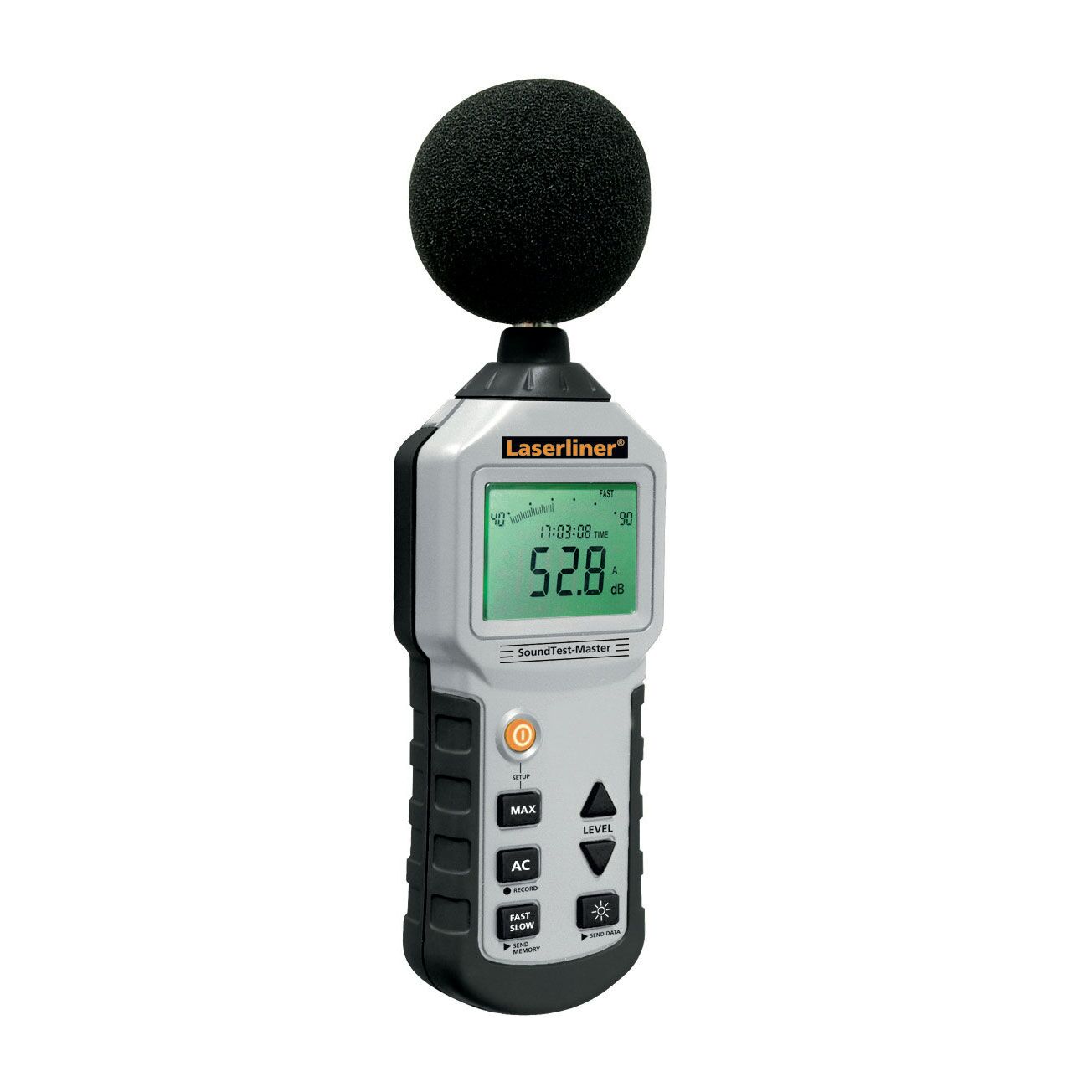

Laserliner SoundTest-Master

£229.99 Price incl. VAT: £275.99

Noise level measure with integrated long-term storage.

Frequency filter: dB(A) or dB(C)
Analogue indicator
Illuminated display
Real-time logging & data recording on PC
Standard curves, time weighted
Long-term recording function
Software for data logging
94 dB/1 kHz noise level calibrator
Condenser microphone, detachable wind guard
Outputs: DC/AC

Supplied with:

AirflowTest-Master | Hard Carry Case
Software | 1 x 9V battery
4 Year Warranty

Add to compare

Add to wishlist

Compare

SKU: 082.070A Categories: Electrical & Test Meters, Sound Meters Tags: Noise Level Calibrator, Noise Meter, Sound Meter

Description

Noise level measuring instrument with integrated long-term storage

Measurement of noise levels with frequency weighting filter according to dB (A) & dB (C) standard curves
Selectable time weighting factors (fast 125 ms/slow 1 s) for optimum adaptation to noise dynamics
Long-term recording function with 16000 storage points or real-time logging on PC
Selectable analogue indicator for visual assessment
Calibrated and adjusted by means of standard 94 dB/1 kHz noise level calibrator
Sensitive electric condenser microphone with detachable wind guard
Analogue outputs: DC & AC
PC software
Illuminated, clearly arranged display

Supplied with:

AirflowTest-Master
Hard Carry Case
Software

1 x 9V battery
4 Year Warranty

Laserliner SoundTest-Master - illustrations

Measurement of noise levels

With frequency weighting filter according to dB (A) & dB (C) standard curves

Laserliner SoundTest-Master - Long term recording

Long term recording function

With 16000 storage points or real-time logging on PC

Calibrated & adjusted

By means of standard 94 dB/1 kHz noise level calibrator

Laserliner SoundTest-Master - LCD & Analogue Outputs

Clear illuminated LCD

And PC software & analogue outputs: DC & AC

Video Tutorial

Precision noise level measuring instrument.

Key Features

Selectable time weighting factors
Frequency weighting filter
Long-term recording function
Selectable analogue indicator for visual assessment

Features		Popular with
Noise level:	30 … 130dB(A): Resolution 0.1%, accuracy ±1.5 dB 35 … 130dB(C): Resolution 0.1%, accuracy ±1.5 dB	Industrial
Noise level:		Environmental
Frequency range:	31.5Hz … 8000 Hz
Dynamic range:	50dB
Data memory:	16000 measuring points

Laserliner
SoundTest-Master
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner SoundTest-Master – Data Sheet

Laserliner SoundTest-Master – Manual

Additional information

Brand	Laserliner

Product Specification

	SoundTest-Master
NOISE LEVEL:	30 … 130dB(A): Resolution 0.1%, accuracy ±1.5 dB 35 … 130dB(C): Resolution 0.1%, accuracy ±1.5 dB
FREQUENCY RANGE:	31.5Hz … 8000 Hz
DYNAMIC RANGE:	50dB
TEST CONDITION:	94dB, 1 kHz sine signal
MEASURING RANGES:	30dB … 80dB 40dB … 90dB 50dB … 100dB 60dB … 110dB 70dB … 120dB 80dB … 130dB
VOLTAGE OUTPUT:	AC: 0.707 Vrms at full deflection approx. 600 ohm output impedance DC: 10 mV/dB approx. 100 ohm output impedance
DATA MEMORY:	16000 measuring points
INTERFACE:	Opto-insulated RS232
BATTERY TYPE:	6 x 1.5V AAA alkali, (LR03)
FREQUENCY RANGE:	31.5Hz … 8000 Hz
DC-ADAPTER:	9V DC, < 100 mV ripple > 100 mA current consumption
DIMENSIONS(W x H x D):	245 x 80 x 35mm
WEIGHT:	0.35 kg

Warranty

4 Year Manufacturer’s Warranty

Sales & Warranty Centre
Summary of Laserliner Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

All Laserliner products are covered by the manufacturers Warranty as stated with each item. Full details are included with the purchased goods, or available upon request. The purchaser is responsible for all carriage and other additional charges incurred when returning the goods to the company under any warranty arrangement.

Limitation of liability

The company shall not be held liable in respect of any loss or damage whether suffered by the purchaser or any customer of the purchaser and whether direct, indirect, consequential, or however else arising. In addition the company cannot be held liable for any loss or damage from defects arising after the goods have been accepted and checked by the purchaser, nor can the company be held liable for incidences of misuse, incorrect storage or improper handling. Any dates specified for the availability of the goods are approximate only and the company shall not be liable for any losses, costs, damages, charges or expenses caused by any delay in delivery of the goods.
