£215.00 Price incl. VAT: £258.00

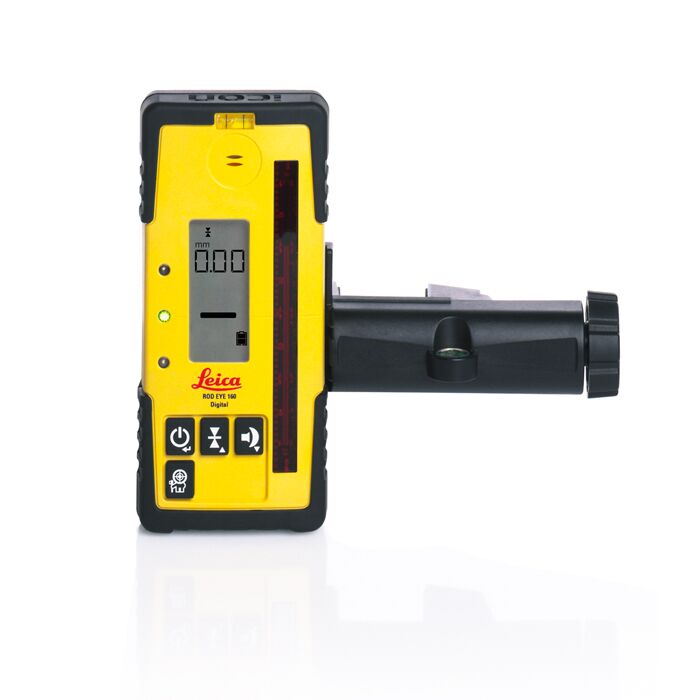

Digital readout – the large numbers are clear and easy to read so you can stay on grade. Capture function allows the user to store and display a measurement. Anti-strobe protection detects and ignores the flash from strong strobes on the job. Capture digital readout for convenient height readings
Supplied with:
| Features | Popular with | |
|---|---|---|
| Working radius : 1350m (4430 ft) | General Construction | |
| Detection accuracies: | Very fine ± 0.5 mm (± 0.02 in) | |
| Fine ± 1.0 mm (± 0.04 in) | ||
| Medium ± 2.0 mm (± 0.08 in) | ||
| Coarse ± 3.0 mm (± 0.12 in) | ||
| Very Coarse ± 5.0 mm ( ± 0.20 in) | ||
| Detection Height: 120 mm | ||
| Detection Height: 120 mm | ||
| Detectable laser beam: 600 nm to 800 nm | ||
| Audio Volumes: | High 105 dBA | |
| Medium 95 dBA | ||
| Low 65 dBA | ||
| Off | ||
| Batteries: 50+ hours (2 x 1.5V “AA”) | ||
| Automatic shut-off: 10 minutes, 24 hours, none | ||
| IP67 for water & dust resistance | ||
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
Leica Geosystems |
|---|
| Technical data | Rod Eye Basic | Rod Eye 120G Basic | Rod Eye 120 Basic | Rod Eye 140 Classic | Rod Eye 160 Digital |
Rod Eye Digital RF |
|---|---|---|---|---|---|---|
|
Anti-strobe |
No |
No |
No |
Yes | Yes | Yes |
|
Smart Targeting / Smart Lock |
No |
No |
No |
No | No | Yes |
|
Working diameter (laser dependent) |
600 m |
400 m |
900 m |
1,350 m | 1,350 m | 1,350 m |
|
Detection window |
36 mm |
70 mm |
70 mm |
120 mm | 120 mm | 120 mm |
|
Digital readout / height |
No |
Yes / 70 mm |
No |
No | Yes / 90 mm | Yes / 90 mm |
|
Digital readout / units |
– |
mm, cm, in, frac, ft |
– |
– | mm, cm, in, frac, ft | mm, cm, in, frac, ft |
|
Detectable spectrum |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
|
Automatic shutoff |
10 minutes |
10 minutes |
10 minutes |
10 minutes | 10 minutes | 10 minutes |
|
Audio volumes |
High / Low / Off |
High / Low / Off |
High / Low / Off |
High / Low / Off | High / Med / Low / Off | High / Med / Low / Off |
|
Arrow display |
5 channels |
11 channels |
9 channels |
9 channels | 15 channels | 15 channels |
|
Detection accuracies |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
|
Protection class (splash /dust proof) |
IP66 |
IP67 |
IP67 |
IP67 | IP67 | IP67 |
|
Battery type / life |
1x 9V / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours | 2x AA / 50+ hours | 2x AA / 50+ hours |
|
Dimensions (HWD) |
150 x 80 x 35 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm | 173 x 76 x 29 mm | 173 x 76 x 29 mm |
|
Operating temperature |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C | –20°C to +50°C | –20°C to +50°C |
Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:
The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems
As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.
We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
