£194.00 Price incl. VAT: £232.80

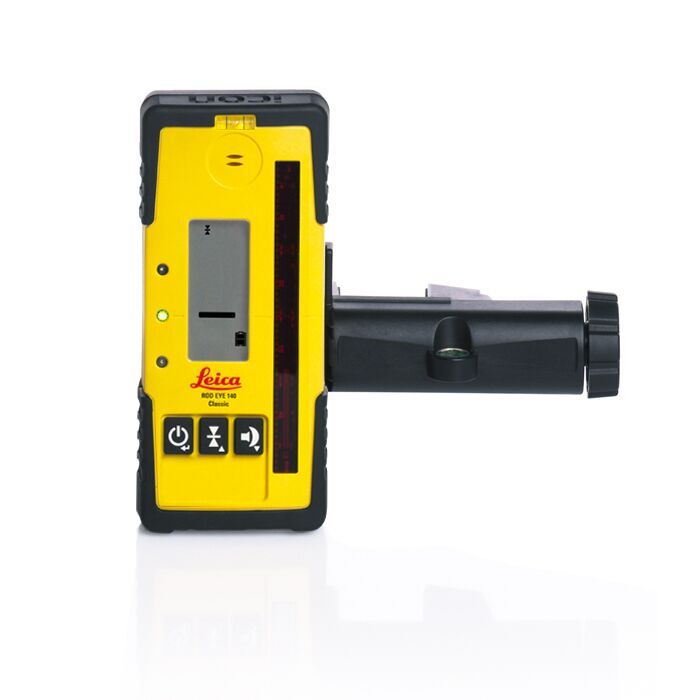

Leica Rod Eye 140: with the built-in 12cm detection window you can easily detect the beam over the entire distance.
Supplied with:
| Features | Popular with | |
|---|---|---|
| Working radius : 900 m (2.950 ft) | General Construction | |
| Detection accuracies: | Fine ± 1.0 mm (± 0.04 in) | |
| Medium ± 2.0 mm (± 0.08 in) | ||
| Coarse ± 3.0 mm (± 0.12 in) | ||
| Detection Height: 70 mm | ||
| Detectable laser beam: 600 nm to 800 nm | ||
| Audio Volumes: | High | |
| Low | ||
| Off | ||
| Batteries: 50+ hours (2 x 1.5V “AA”) | ||
| Automatic shut-off: 10 minutes | ||
| IP67 for water & dust resistance | ||
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
Leica Geosystems |
|---|
| Technical data | Rod Eye Basic | Rod Eye 120G Basic | Rod Eye 120 Basic | Rod Eye 140 Classic | Rod Eye 160 Digital |
Rod Eye Digital RF |
|---|---|---|---|---|---|---|
|
Anti-strobe |
No |
No |
No |
Yes | Yes | Yes |
|
Smart Targeting / Smart Lock |
No |
No |
No |
No | No | Yes |
|
Working diameter (laser dependent) |
600 m |
400 m |
900 m |
1,350 m | 1,350 m | 1,350 m |
|
Detection window |
36 mm |
70 mm |
70 mm |
120 mm | 120 mm | 120 mm |
|
Digital readout / height |
No |
Yes / 70 mm |
No |
No | Yes / 90 mm | Yes / 90 mm |
|
Digital readout / units |
– |
mm, cm, in, frac, ft |
– |
– | mm, cm, in, frac, ft | mm, cm, in, frac, ft |
|
Detectable spectrum |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
|
Automatic shutoff |
10 minutes |
10 minutes |
10 minutes |
10 minutes | 10 minutes | 10 minutes |
|
Audio volumes |
High / Low / Off |
High / Low / Off |
High / Low / Off |
High / Low / Off | High / Med / Low / Off | High / Med / Low / Off |
|
Arrow display |
5 channels |
11 channels |
9 channels |
9 channels | 15 channels | 15 channels |
|
Detection accuracies |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm |
Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm |
|
Protection class (splash /dust proof) |
IP66 |
IP67 |
IP67 |
IP67 | IP67 | IP67 |
|
Battery type / life |
1x 9V / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours |
2x AA / 50+ hours | 2x AA / 50+ hours | 2x AA / 50+ hours |
|
Dimensions (HWD) |
150 x 80 x 35 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm |
173 x 76 x 29 mm | 173 x 76 x 29 mm | 173 x 76 x 29 mm |
|
Operating temperature |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C |
–20°C to +50°C | –20°C to +50°C | –20°C to +50°C |
