£349.00 Price incl. VAT: £418.80

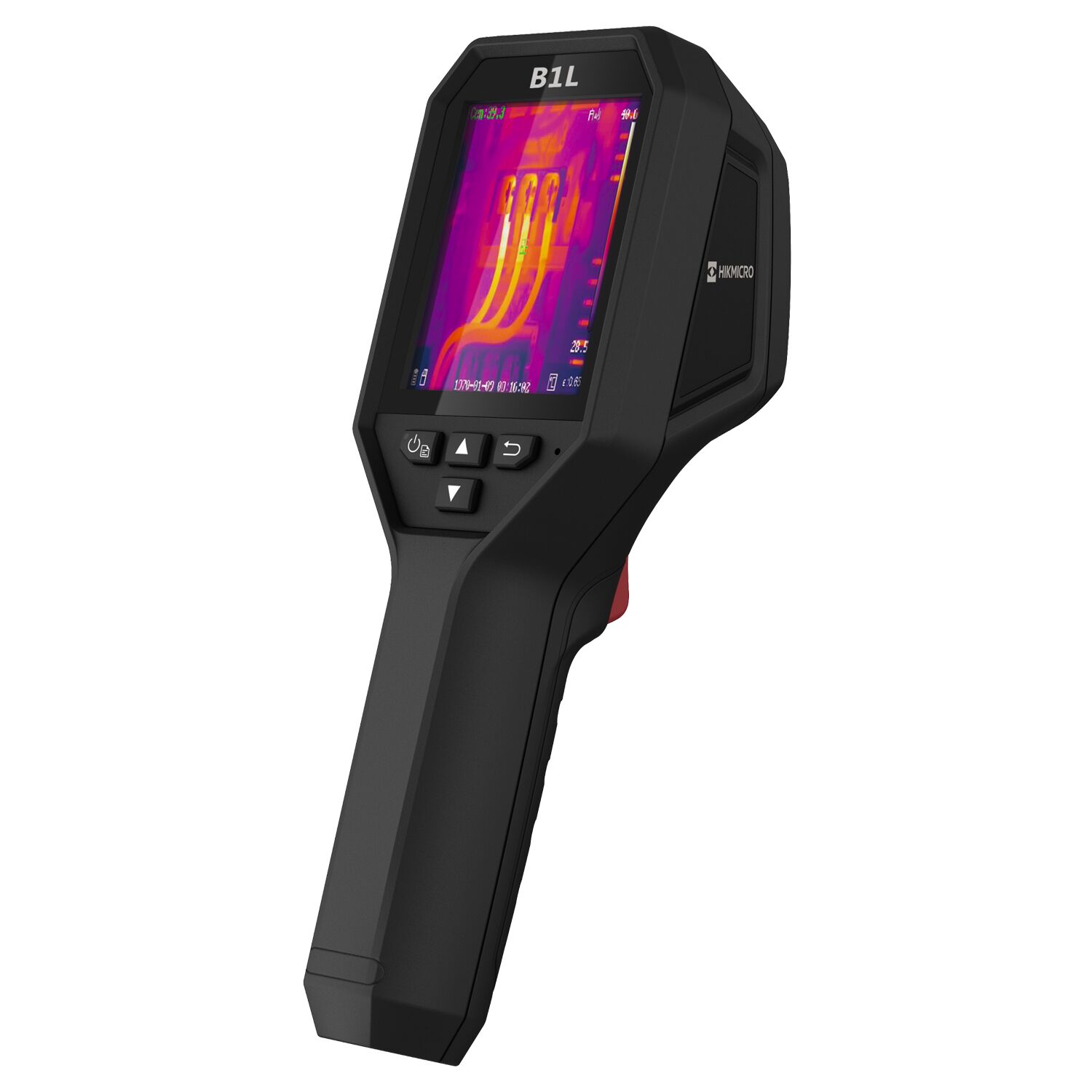

Handheld Thermography Camera
Supplied with:
Designed for temperature measurement to find invisible faults. It’s equipped with a 160 x 120 resolution HIKMICRO thermal detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F) which can accommodate most situations. It helps quickly find faults with accurate temperature measurement of high temperature targets in the environment.
The device is suitable for use in tindustries, such as building, HVAC and the auto industry.
Supplied with:
A highly sensitive HIKMICRO VOx detector up to 256 x 192 resolution.
3.2″ LCD provides a 75% larger screen than other products in the category.
Thermal, fusion, PIP and optical modes to suit your preferred view.
Connect to mobile devices via built-in Wi-Fi and the viewer app to quickly share your images.
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
HIKMICRO |
|---|
| THERMAL MODULE: | |
|---|---|
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 to 14 μm |
| NETD | < 40 mK (@25°C), F# = 1.0 |
| Focal Length | 3.5 mm |
| FOV (Field of View) | 32.9°× 44.4° |
| Image Frequency | 25 Hz |
| Focus | Fixed |
| IFOV (Spatial Resolution) | 4.85 mrad |
| Aperture | F1.1 |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| IMAGE DISPLAY: | |
|---|---|
| Display | 320 × 240 Resolution, 3.2’’ LCD Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| MEASUREMENT & ANALYSIS: | |
|---|---|
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Point Presets, Off |
| High Temperature Alarm | Audible Warning |
| STORAGE: | |
|---|---|
| Storage Media | EMMC (4 GB) |
| Image Storage Capacity | 30,000 Images |
| Image File Format | JPEG with Measurement Data Included |
| FUNCTIONS: | |
|---|---|
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| UVC Cast Screen | Yes |
| Level/Span | Auto/Manual |
| POWER SYSTEM: | |
|---|---|
| Power Supply | 3.7 VDC/0.4 A |
| Power Consumption | 1.5 W |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Operating Time | 8 Hours Continuous Running |
Summary of Hikmicro Manufacturers Warranty
Limited Warranty: HIKMICRO warrants that from the date of purchase and for the applicable warranty period, the products will conform in all material respects to its specifications at the time of sale and be free from material defects under proper use and service in accordance with the specifications. “Specifications” means the specifications delivered to Customer with or in the product and/or published on HIKMICRO’s website for the applicable version of the product. Customer agrees that Specifications and other warranty information may be supplied only in the English language, unless otherwise required by local law without the possibility of contractual waiver or limitation.
This limited warranty extends only to Customer and is not transferable to any other party and any transfer made in violation of this provision shall be void. The warranty applies only to the unmodified portion of the products. Customer is responsible for the results obtained from the use of the Products. Customer’s sole remedy, and HIKMICRO’s sole liability, for any breach of the foregoing warranty shall be to replace or repair any part or parts (or redeliver services) which were delivered in breach of the foregoing warranty.
