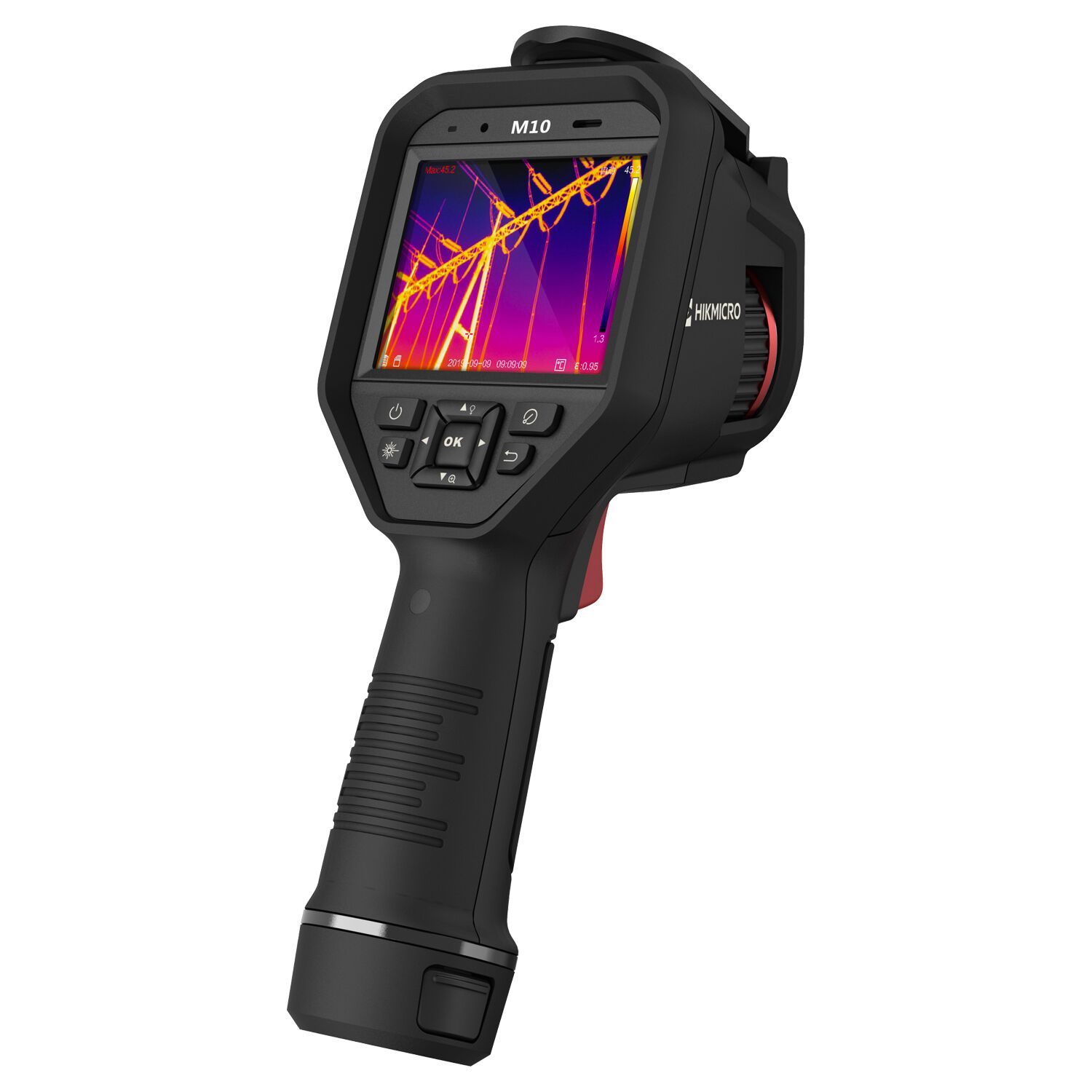

HIKMICRO M10
£899.00 Price incl. VAT: £1,078.80
Handheld Thermography Camera
- 3.5″ LCD Touch Screen
- Temp range: -20°C to 550°C (-4°F to 1022°F
- 8 MP visual camera | 25 Hz image frequency
- Field of view: 25° × 18.7° | Drop test: 2m
- Runtime up to 5 hours
Supplied with:
- Hikmicro M10 Thermal Camera
- Adapters (× 4) | Wrist strap
- USB Cable | Power adapter
- Battery ( x2 ) | Charging base
- Hard carry case | Quick start guide
- 1 Year Warranty
Description
HIKMICRO M10 Video Tutorials
HIKMICRO M SERIES – Intro Video
HIKMICRO M SERIES – How To Video
Rugged and durable design
IP54 rated for protection against water and dust. Featuring 2 meter drop protection. Suitable for industrial use.
Laser pointer
The laser pointer helps show the position of the centre point on the actual object.
Multiple image annotations
Make text or audion annotations within the images instead of taking notes by hand.
Interchangeable battery system
Includes 2 interchangeable batteries and a 2 bay charger to provide you with up to 12 hours of operation.
Hikmicro M10
Documentation
View and download this product’s brochure, datasheet, and manual in a PDF format
Additional information
| Brand | HIKMICRO |
|---|
Product Specification
Product Specification
| THERMAL MODULE: | |
|---|---|
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 to 14 μm |
| NETD | < 40 mK (@25°C), F# = 1.0 |
| Focal Length | 6.2 mm |
| FOV (Field of View) | 25°× 18.7° |
| Image Frequency | 25 Hz |
| Focus | Manual |
| IFOV (Spatial Resolution) | 2.74 mrad |
| Aperture | F1.1 |
| Minimum Focus Distance | 0.2 m (0.66 ft) |
| OPTICAL MODULE: | |
|---|---|
| Picture Resolution | Configurable: 2 MP, 5 MP, 8 MP |
| Video Resolution | 640 × 480 |
| Focus | Fixed |
| FOV | 25° × 18.7° |
| IMAGE DISPLAY: | |
|---|---|
| Display | 640 × 480 Resolution, 3.5’’ LCD Touch Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Image Modes | Thermal / Optical / Fusion / PIP |
| PIP | Thermal Picture in Optical Picture |
| Fusion | Thermal Picture and Optical Picture Combined |
| MEASUREMENT & ANALYSIS: | |
|---|---|
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Off |
| Point | 10 User Presets |
| Line | 1 User Preset |
| Area | 3 User Presets |
| High Temperature Alarm | Audible Warning |
| Colour Alarm (isotherm) | Above/Below/Interval/Insulation |
| STORAGE: | |
|---|---|
| Storage Media | Removable Micro SD Card (16 GB) |
| Image Storage Capacity | 30,000 Images |
| Image File Format | JPEG with Measurement Data Included |
| Video Storage Capacity | 10 Hours |
| Video File Format | MP4 |
| FUNCTIONS: | |
|---|---|
| Laser Pointer | Yes |
| Laser Type | Class II |
| LED Light | 70 Lumens |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| Bluetooth | Bluetooth 4.2 |
| Level/Span | Auto/Manual |
| Text Comment | Max 200 Characters |
| Voice Comment | Max 60 Seconds |
| POWER SYSTEM: | |
|---|---|
| Power Supply | 12 V DC/1.5A, 5V DC/2A (Charging via USB) |
| Power Consumption | 4.2 W |
| Battery Type | Dismountable and Rechargeable Li-ion Battery |
| Battery Operating Time | 5 Hours Continuous Running |
Warranty
Warranty
1 Year Manufacturer’s Warranty
Summary of Hikmicro Manufacturers Warranty
EXPRESS WARRANTY FOR HARDWARE
Limited Warranty: HIKMICRO warrants that from the date of purchase and for the applicable warranty period, the products will conform in all material respects to its specifications at the time of sale and be free from material defects under proper use and service in accordance with the specifications. “Specifications” means the specifications delivered to Customer with or in the product and/or published on HIKMICRO’s website for the applicable version of the product. Customer agrees that Specifications and other warranty information may be supplied only in the English language, unless otherwise required by local law without the possibility of contractual waiver or limitation.
Limitation of liability
This limited warranty extends only to Customer and is not transferable to any other party and any transfer made in violation of this provision shall be void. The warranty applies only to the unmodified portion of the products. Customer is responsible for the results obtained from the use of the Products. Customer’s sole remedy, and HIKMICRO’s sole liability, for any breach of the foregoing warranty shall be to replace or repair any part or parts (or redeliver services) which were delivered in breach of the foregoing warranty.
