£519.00 Price incl. VAT: £622.80
High performance compact thermal imaging camera for professionals
Supplied with:

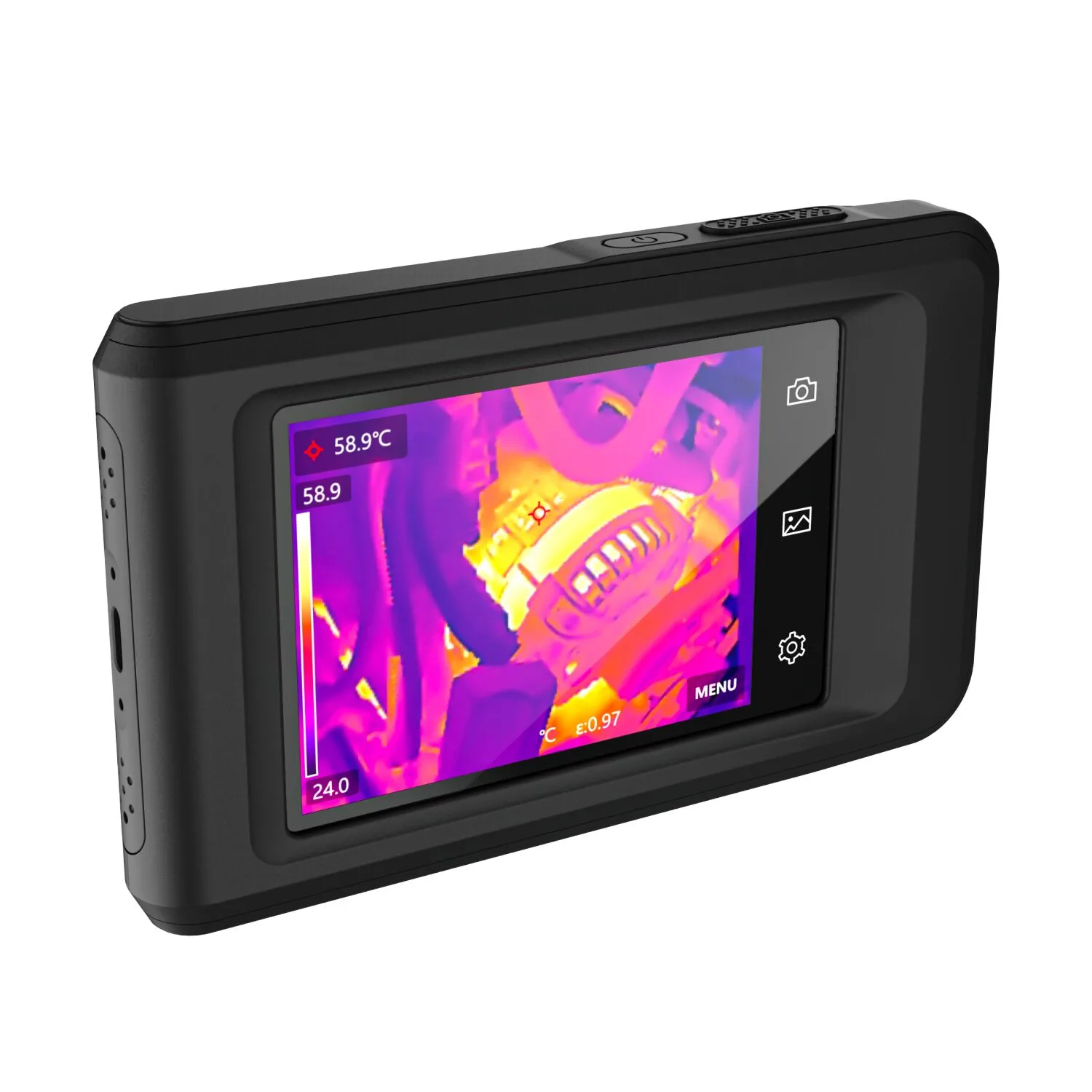

This HIKMICRO Pocket2 thermography camera is equipped with a high resolution Vox detector, an 8 MP optical camera, and a 3.5″ LCD touch screen. It helps you to quickly and efficiently locate hidden problems and accurately measure abnormal temperature. The wide temperature range is ideal for building inspections and the Wi-Fi function allows the Pocket2 to share images in real time.
Supplied with:
A highly sensitive VOx 256 x 192 detector provides a distinct thermal image of the target.
Easy to carry and hold. Fits perfectly in your pocket and tool bag.
IP54 rated for protection against water and dust. With 2 m drop protection, suitable for industrial use.
View the details of your subject from different angles on the large, 3.5″ LCD touch screen.
| Overview | Applications |
|---|---|
| IMAGE RESOLUTION: 256 x 192 (49, 152 pixels) | Construction |
| NETD: < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0 | HVAC |
| FIELD OF VIEW: 50° H × 37.2° V | Mechanical Engineering |
| DISPLAY: 640 × 480 Resolution, 3.5’’ LCD Touch Screen | Auto Industry |
| OBJECT TEMPERATURE RANGE: -20 °C to 400 °C ( -4 °F to 752 °F ) | |
| ACCURACY: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) | |
| WI-FI: 802.11 b/g/n (2.4 GHz, 5 GHz) | |
| VISIBLE IMAGE RESOLUTION: Configurable: 2 MP, 5 MP, 8 MP | |
| IMAGE MODES: Thermal/Optical/Fusion/PIP | |
| PROTECTION LEVEL: IP54 | |
| DROP TEST: 2m |
View and download this product’s brochure, datasheet, and manual in a PDF format
| Brand |
HIKMICRO |
|---|
| THERMAL MODULE: | |
|---|---|
| IR RESOLUTION | 256 x 192 IL J91, 52 pixels) |
| SPECTRAL RANGE | 8 to l4 μm |
| NETD | < 0.04° [ 40mK) at 25°C [ 77°F) ambient temperature, F# = 1.0 |
| FOCAL LENGTH | 3.5 mm |
| FOCUS | Fixed |
| FOV [FIELD OF VIEW) | 50° H X 37.2° V |
| IFOV [SPATIAL RESOLUTION) | 3.43 mrad |
| IMAGE FREQUENCY | 25 Hz |
| MIN. FOCUSING DISTANCE | 0.3 m (0.98 ft) |
| DETECTOR TYPE | Vanadium Oxide Uncooled Focal Plane Array |
| DETECTOR PITCH | 12 μm |
| F-NUMBER | F1.1 |
| OPTICAL MODULE: | |
|---|---|
| FOV [FIELD OF VIEW) | 64.6° H X 51.5° V |
| PICTURE RESOLUTION | Configurable: 2 MP, 5 MP, 8 MP |
| VIDEO RESOLUTION | 640 x 480 |
| FOCUS | Fixed |
| BUILT-IN VISUAL CAMERA | 3264 x 2488 ( 8 MP ) |
| IMAGE DISPLAY: | |
|---|---|
| LEVEL/SPAN | Auto / Manual / 1-Tap Touch-screen |
| DISPLAY | 640 x 480 Resolution, 3.5" LCD Touch Screen |
| IMAGE MODES | Thermal / Optical / Fusion / PIP |
| COLOUR PALETTES | 7: White Hot, Black Hot, Rainbow, lronbow, Red Hot, Fusion, Rain |
| FUSION | Thermal image with visual camera details |
| DIGITAL ZOOM | 1.0x to 4.0x continuous |
| PIP | Resizable and movable infrared area on the visual image |
| SCREEN BRIGHTNESS | Manual adjustment |
| MINIMUM TEMP SPAN (MANUAL) | 2°C (3.6°F) |
Summary of Hikmicro Manufacturers Warranty
Limited Warranty: HIKMICRO warrants that from the date of purchase and for the applicable warranty period, the products will conform in all material respects to its specifications at the time of sale and be free from material defects under proper use and service in accordance with the specifications. “Specifications” means the specifications delivered to Customer with or in the product and/or published on HIKMICRO’s website for the applicable version of the product. Customer agrees that Specifications and other warranty information may be supplied only in the English language, unless otherwise required by local law without the possibility of contractual waiver or limitation.
This limited warranty extends only to Customer and is not transferable to any other party and any transfer made in violation of this provision shall be void. The warranty applies only to the unmodified portion of the products. Customer is responsible for the results obtained from the use of the Products. Customer’s sole remedy, and HIKMICRO’s sole liability, for any breach of the foregoing warranty shall be to replace or repair any part or parts (or redeliver services) which were delivered in breach of the foregoing warranty.
The new PTi120 is a professional grade thermal imager that fits in your pocket. Small enough to carry around everyday, with quick scanning ability of electrical equipment, machinery and other assets.
High-resolution thermal imaging camera for use in the construction industry, mechanical engineering and electrical engineering - perfect for detailed image analysis.
