Laserliner MasterPlane-Laser 3G Plus - Scope of Delivery

Click to enlarge

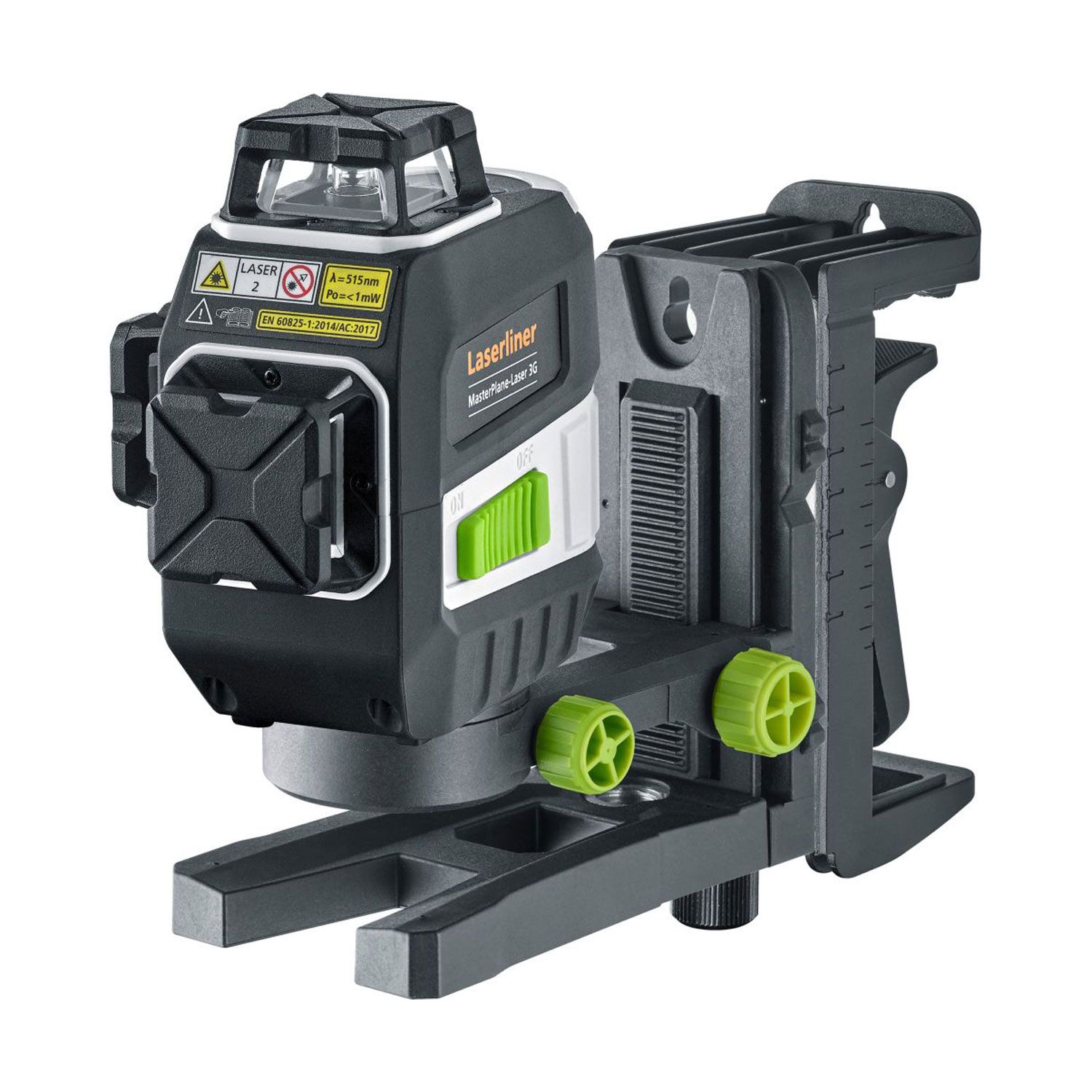

Laserliner MasterPlane-Laser 3G Plus

£399.99 Price incl. VAT: £479.99

Horizontal & vertical 360º laser circles
GREEN DLD laser technology
Automatic level with Tilt mode
Optimised for working close-to-ceiling
Out-of-level indication
GRX-Ready: Optional laser receiver with a detection range of up to 50m

Supplied with:

Magnetic Wall Mount
Li-Ion battery & charge lead | Hard Case
4 Year Warranty

Add to compare

Add to wishlist

Compare

SKU: 031.400A Categories: Cross Line Lasers, Levelling & Line Lasers, Multi Line Lasers Tags: Laser levelling, Layout Laser Level, Li-ion Battery Pack, MasterPlane-Laser 3G Plus, Outdoor Laser Measure

Description

Three-dimensional laser with one horizontal and two vertical green laser circles with clamping and wall bracket with vernier adjustment mechanism.

This three-dimensional, highly visible laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working on floors and ceilings at the same time. The laser lines can be switched individually and the Anti-Drift-System (ADS) automatically switches the device off to avoid measurement errors due to external influences. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles.

Three-dimensional laser with a horizontal & two vertical 360° laser circles
Accurate horizontal & vertical alignment of objects
Good visibility through green laser technology
Magnetic clamp & wall bracket for hanging, horizontal & vertical clamping to profiles, & attaching to metallic surfaces
MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges & adjusting screw to adapt the bracket to different profile thicknesses

Supplied with:

Magnetic Wall Mount
Li-Ion battery & charge lead

Hard Case
4 Year Warranty

Laserliner X3-Laser Pro - 360 Degree Laser Lines

Horizontal and vertical 360 degree laser lines

Horizontal and vertical 360° laser lines

With green laser lines which are sharp, distinct and therefore clearly visible.

Optimised for work close to the ceiling

Drywall construction profiles

Ideal for mounting both horizontally and vertically.

Optional Range Extender M50

GRX-Ready: Optional laser receiver with a detection range of up to 50m.

Video Tutorial

3D laser with 1 horizontal &2 vertical green laser circles.

Laserliner
MasterPlane-Laser 3G Plus
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner MasterPlane-Laser 3G Plus – Datasheet

Laserliner MasterPlane-Laser 3G Plus – Manual

Additional information

Brand	Laserliner

Product Specification

Self-Levelling Range:	± 3.5° (horizontal)
Accuracy:	± 0.2 mm / m
Levelling:	Automatic
Visibility (Typical)*	55 m
Operating Range (depending on room illumination):	50m
Laser Wavelength:	515 nm Laser Class 2 / < 1 mW (EN 60825-1:2014/ A11:2021 / EN 50689-1:2021)
Power Supply Li-ion battery pack:	7.4V / 2.6Ah / 19.24Wh Power adapter 5V/DC / 2A
Operating Time with 3 laser levels:	Approx. 5 hours with 2 laser levels: approx. 10 hours with 1 laser level: approx. 17 hours
Operating Conditions:	0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions:	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D):	140 mm x 130 mm x 85 mm
Weight:	636 g (incl. battery pack)

Warranty

4 Year Manufacturer’s Warranty

Sales & Warranty Centre
Summary of Laserliner Manufacturers Warranty

EXPRESS WARRANTY FOR HARDWARE

All Laserliner products are covered by the manufacturers Warranty as stated with each item. Full details are included with the purchased goods, or available upon request. The purchaser is responsible for all carriage and other additional charges incurred when returning the goods to the company under any warranty arrangement.

Limitation of liability

The company shall not be held liable in respect of any loss or damage whether suffered by the purchaser or any customer of the purchaser and whether direct, indirect, consequential, or however else arising. In addition the company cannot be held liable for any loss or damage from defects arising after the goods have been accepted and checked by the purchaser, nor can the company be held liable for incidences of misuse, incorrect storage or improper handling. Any dates specified for the availability of the goods are approximate only and the company shall not be liable for any losses, costs, damages, charges or expenses caused by any delay in delivery of the goods.
