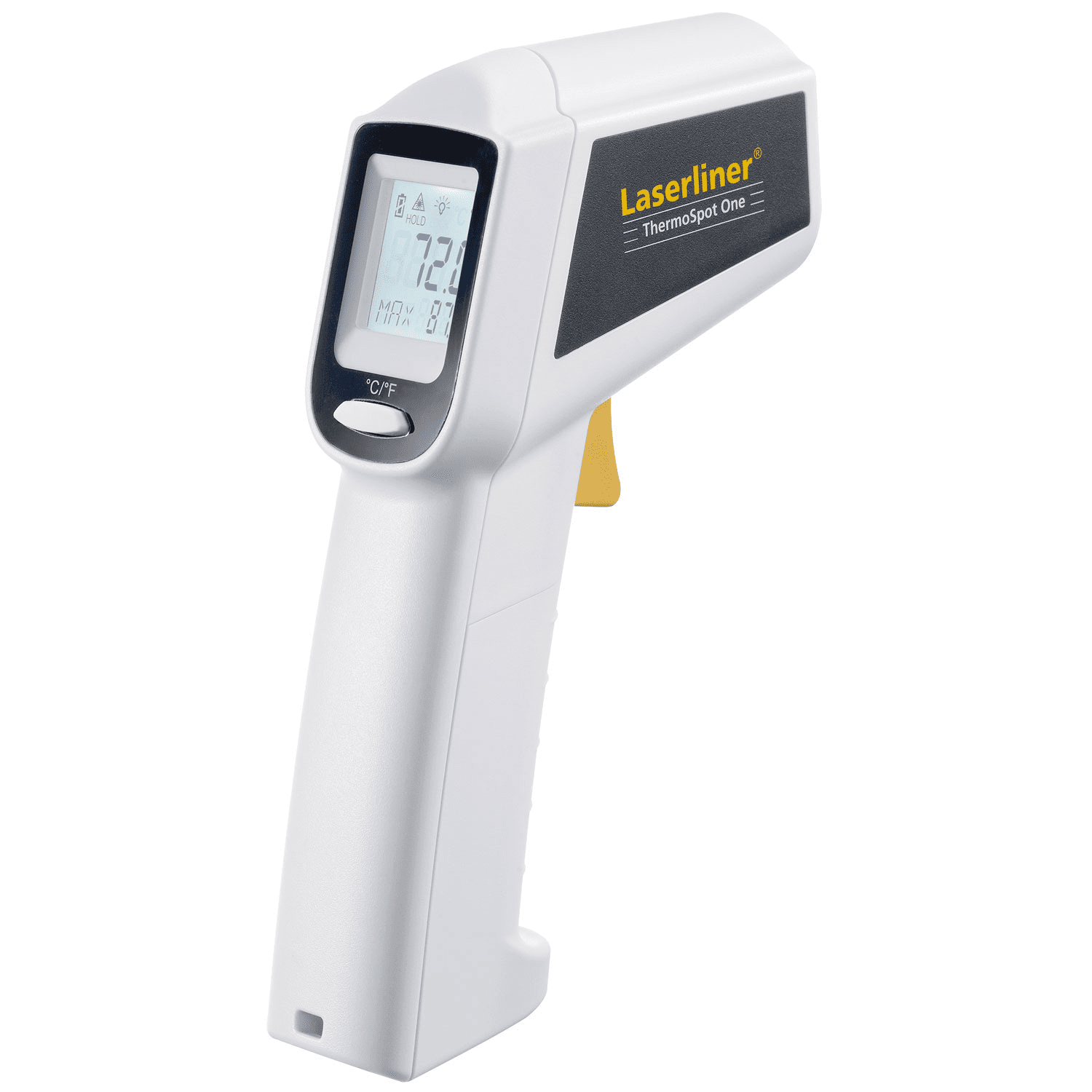

Laserliner ThermoSpot

£65.99 Price incl. VAT: £79.19

Non-contact infrared temperature meter with laser circle for focusing. Ideal for sensitive surfaces and hazardous applications.

  • Large temperature range
  • Range: -38ºC – 600ºC
  • Accuracy ± 2%
  • 8-point laser circle
  • Auto hold function

Supplied with:

  • ThermoSpot | 9v Battery
  • 4 Year Warranty
Compare
Description

Non-contact infrared temperature measurement – with laser for focusing

  • Functions: Surface temperature.
  • Non-contact temperature measurement: This non-contact measuring method is ideal for taking temperature measurements in locations that are difficult to access. It can also be used to take measurements in hazardous zones, like those in which there are moving machine parts or in electrical installations.
  • Focusing with a laser: highlighting the point to be measured and allowing you to focus very precisely.
  • Max. function: The highest measured value is indicated on the display whilst the measurement is being taken.
  • Data hold function: The most recent measured value is saved temporarily.
  • Measured value display can be switched from °C to °F.

Supplied with:

  • ThermoSpot
  • 9v Battery
  • 4 Year Warranty
Laserliner ThermoSpot - illustrations
Laserliner ThermoSpot - non contact

Non-contact

Ideal for taking temperature measurements in hard to reach or hazardous areas.

Laserliner ThermoSpot - surface temperature

Surface Temperature

Measured value display can be switched from °C to °F.

Laserliner ThermoSpot - laser focus

Laser focus

Highlighting the point to be measured & allowing you to focus very precisely.

Laserliner ThermoSpot - max function

Max Function

The highest measured value is indicated on the display.

Video tutorial

Non-contact infrared temperature measurement

Key Features

  • Non-contact temperature measurement
  • Laser precise focusing
  • °C or °F
  • Max. measurement function
Overview Applications
Measurement Range: -20 °C … 315 °C Sensitive surfaces
Accuracy: ± 1,5 °C (-20 °C to 60 °C)± 2 °C (< -10 °C and > 60 °C) or ± 2 % whichever value is greater Hazardous areas
OPTIC 8:1 (8 m distance : 1 m measured spot) Live electrical installations

ThermoSpot
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Additional information
Brand

Laserliner

Product Specification

Product Specification

ThermoSpot
Measurement Range: -20 °C … 315 °C
Accuracy: ± 1,5 °C (-10 °C to 60 °C)
± 2 °C (< -10 °C and > 60 °C) or
± 2 % whichever value is greater
Optic: 8:1 (8 m distance : 1 m measured spot)
Resolution: 0,1 °C
Emission Coefficient: 0,95
Laser Wavelength: 650 nm
Laser Class: 2, < 5 mW
Operating Temperature: 0 °C … 40 °C
Power supply: 9v E Block
Dimensions (W x H x D): 108 x 161 x 38 mm
Weight (incl. batteries): 185 g
