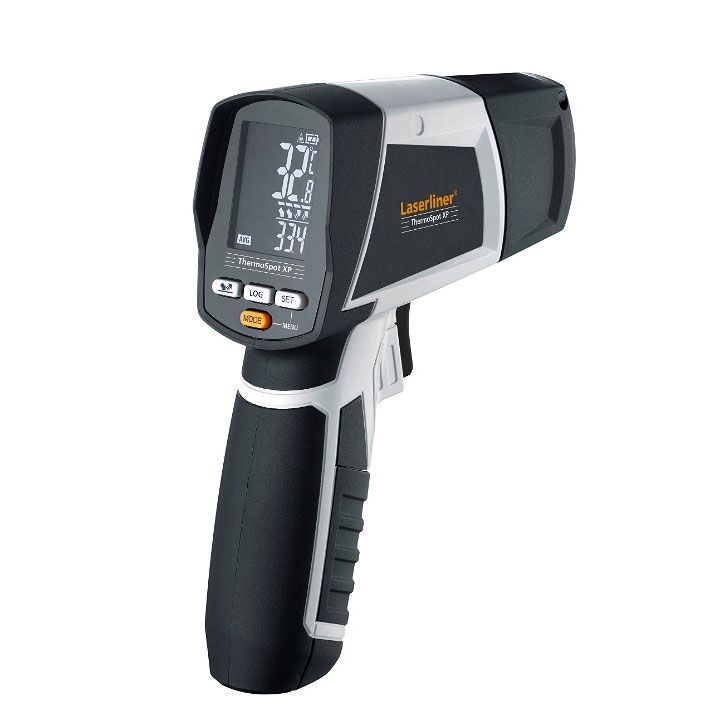

Laserliner ThermoSpot XP

£274.99 Price incl. VAT: £329.99

Infrared temperature sensor for the precise measurement of surfaces in the high-temperature range with Bluetooth interface.

Surface & contact temperature
Bluetooth interface
8-point laser circle for exact pinpoints
50:1 lens for precise measurement
Colour alarm function
Min/Max/AVG/Dif function
Memory function
Data-hold

Supplied with:

ThermoSpot | Hard Case |
2 x 1.5V Alkaline Batteries (type AAA)
4 Year Warranty

Compare

Add to wishlist

Compare

SKU: 082.043A Category: Infrared Thermometers Tags: Bluetooth, Infrared Temperature Measurement, Non-contact Temperature Measurement

Description

Infrared temperature sensor for the precise measurement of surfaces in the high-temperature range with Bluetooth interface

Functions: Surface and contact temperature
Bluetooth interface for measurement data transfer
Non-contact temperature measurement in difficult-to-reach places and in hazardous measuring zones
The 8-point laser circle pinpoints the measuring zone exactly
50:1 lens: Precise, pinpoint measurement
Connection for K-type temperature sensor
Colour alarm function: Deviations from the desired temperature range are indicated in colour in the display
Min/Max/AVG/Dif function: The smallest, largest, average or difference infrared measured value can be displayed
Adjustable emissivity (0.01 – 1.0) with quick selection of 5 memory locations
Memory function: 50 storage locations
Measurement display in °C or °F, selectable
Data-Hold: The most recent measured values are saved temporarily
The multifunction display shows different measured values simultaneously
Sturdy, ergonomically designed, rubberised casing

Supplied with:

ThermoSpot
Hard Carry Case

2 x 1.5V Alkaline Batteries (type AAA)

4 Year Warranty

Laserliner ThermoSpot XP - colour alarm function:

Laserliner ThermoSpot XP - 8 point laser circle

Surface & contact temperature

Exactly pinpoint the measuring zone with the 8-point laser circle.

Bluetooth interface

For wireless transfer of measurement data.

Laserliner ThermoSpot XP - hazardous areas

Non-contact

Temperature measurement for hard-to-reach places or hazardous areas.

Colour alarm function

Deviations from the desired temperature range are indicated in colour.

Key Features

Surface & contact temperature measurement
Bluetooth interface for measurement data transfer
Non-contact for measurement in difficult-to-reach places & in hazardous measuring zones
The 8-point laser circle pinpoints the measuring zone exactly

Overview	Applications
Measurement Range: -40 °C … 1500 °C	Sensitive surfaces
Laser: 8 point laser circle	Hazardous areas
OPTIC 50:1 (50 m distance : 1 m measured spot)	Live electrical installations

ThermoSpot XP
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner ThermoSpot XP – Data Sheet

Additional information

Brand	Laserliner

Product Specification

	ThermoSpot XP
Infrared Temperature:	-40°C…1500°C / -40°F…2732°F -40°C…0°C / -40°F…32°F (± (1°C + 0,1°C / 1°C)) / (± (1,8°F + 0,18°F / 1°F)) 0°C…33°C / 32°F…91,4°F (± 1°C / ± 1,8°F or ± 1% depending on the higher value) >33°C / >91,4°F (± 2°C / ± 3,6°F or ± 2% depending on the higher value)
Display Resolution:	0,1°C / 1°C (≥1000°C) / 0,1°F / 1°F (≥1000°F)
Contact Temperature K-Type:	-30°C…1372°C / -22°F…2501,6°F (± 1°C / ± 1,8°F or ± 1% depending on the higher value)
Optics:	50:1 (50 m distance : 1 m measured spot)
Emission Coefficient:	0,01 – 1,0 adjustable
Laser:	8-point laser circle
Laser Class:	2, < 1 mW
Laser Wavelength:	650 nm
Storage Temperature:	-10 °C … 60 °C
Power Supply:	Batteries 2 x 1,5 V type AA
Runtime:	20 hours
Operating Conditions:	0…50°C / 32…122°F, 80%rH, no condensation, max. altitude 2000 m -10…60°C / 14…140°F, 80%rH, no condensation
Radio Module Operating Data:	Bluetooth LE 4.x interface
Dimensions (W x H x D):	150 x 190 x 60 mm
Weight:	(incl. batteries) 486 g
