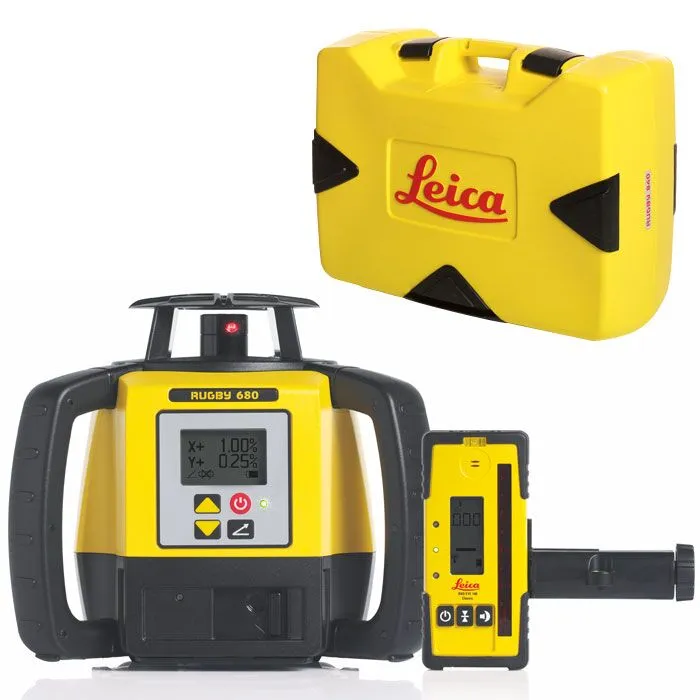

Leica Rugby 680 Machine Only

Range 800m Diameter
Digital slope in dual axis
Rotation 10 rps
Beam down & sleep mode
Grade range ± 8% DG
Accuracy 1.5mm at 30m
IP67: sealed against water

Supplied with:

Rugby 680 | Li-ion Battery
Leica Rod Eye 160 Digital
Hard Case & Leica Protect Warranty
Calibration Certificate

Comes fully Calibrated & Guaranteed for Accuracy.

CALL FOR PRICE:
0800 292 2188
FREEPHONE

Add to Wishlist

Add to compare

Add to wishlist

Compare

SKU: 6006010 Category: Rotary Lasers Tag: Leica Rugby 600 Series

Description

Ideal for setting out. Slopes done easy!

A reliable and accurate general construction laser, designed for the concrete contractor. Semi-automatic, self-levelling with dial-in digital dual grade capability. Its protective rubber overmold and IP67 rating means it’s rugged and waterproof – perfect for job site conditions. It’s also easy and quick to use at just the touch of a button. The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance throughout the course of the day.

Supplied with:

Rugby 680 | Li-ion Battery
Leica Rod Eye 160 Digital
Hard Case & Leica Protect Warranty
Calibration Certificate

Designed for the concrete contractor
Semi-automatic, self-levelling with dial-in digital dual grade capability
Smart Slope function for accurate performance throughout the day
Tough and waterproof – It’s built for the construction site, extremely durable laser housing
Easy to use – fully automatic, one button simplicity, it’s impossible to make a mistake.
Superb performance – work longer, work more accurately, work in all weather conditions.
It’s a LEICA – Quality guaranteed – what other laser level comes complete with a 5 year no quibble warranty covering all aspects of the lasers parts including wear and tear.
Complete package – with different battery options and the choice of laser receivers, the Rugby 680 offers a package for your specific needs.
Fully calibrated before we dispatch. So that accuracy can be guaranteed, we calibrate & certificate each
device to ISO standards before it leaves our warehouse.

Leica Rugby 680 Video Tutorial

How to use the Leica Rugby 680 Rotating Laser

Call us for advice: 0800 292 2188

Key Features

Range 800m Diameter
Digital slope in dual axis
Rotation 10 rps
Beam down & sleep mode
Grade range ± 8% DG
Accuracy 1.5mm at 30m
Li-ion battery life 40+ hours
IP67 Waterproof & Dustproof
Comes fully Calibrated & Guaranteed for Accuracy

Features	Popular with
Operating Range 900m diameter	General Construction
Self-leveling Accuracy* ±1.5mm at 30m	Contractors
Robust & Waterproof – IP67	Ground workers
Rotation 10 rps	Landscapers
Digital slope in dual axis	Fencing
Grade range ± 8% DG	Concrete bases & foundations
Beam down & sleep mode

Leica Rugby 600 Series Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Leica Rugby 600 Series Brochure

Leica Rugby 600 Series Data Sheet

Leica Rod Eye Technical Data Sheet

Trade Survey – Grade Chart

Additional information

Brand	Leica Geosystems

Product Specification

Technical data	Rugby 610	Rugby 620	Rugby 640/640G	Rugby 680
Functionality	Self-levelling horizontal, one button laser	Self-levelling horizontal & manual slope in one axis	Self-levelling horizontal, vertical, 90° and manual slope in dual axis	Self-levelling horizontal, vertical, 90°, dial in grade in single or dual axis. Smat slope function.
Product type	General construction	General construction	Multipurpose / H.V.	Semi-auto grade
Laser class	Class 2	Class 2	Class 2	Class 2
Laser type	635 nm (red)	635 nm (red)	635 nm (red) / 520 nm (green)	635 nm (red)
Plumb up	–	–	Yes	–
Rotation – RPS	10	10	0, 2, 5, 10	10
Scanning – degrees	–	–	10, 45, 90	–
Range (diameter) – Basic	500 m	600 m	500 m	600 m
Range (diameter) – RE140/160	600 m	800 m	600 m	800 m
RF remote control (diameter)	–	–	200 m	–
Batteries (alkaline/rechargeable)	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack	Four D-cells / Li-Ion pack
Battery life (alkaline/rechargeable)**	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C	40 hours / 60 hours @ 20 °C
Extended operating temperature	–10° to +50° C (14° to +122° F)	–20° to +50° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)	–20° to +60° C (-4° to +122° F)
Storage temperature	–20° to +70°C (–4° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)	–40° to +70°C (–40° to +158°F)
Environmental standard	IP67	IP67	IP67	IP67

Technical data	Rod Eye Basic	Rod Eye 120G Basic	Rod Eye 120 Basic	Rod Eye 140 Classic	Rod Eye 160 Digital	Rod Eye Digital RF
Anti-strobe	No	No	No	Yes	Yes	Yes
Smart Targeting / Smart Lock	No	No	No	No	No	Yes
Working diameter (laser dependent)	600 m	400 m	900 m	1,350 m	1,350 m	1,350 m
Detection window	36 mm	70 mm	70 mm	120 mm	120 mm	120 mm
Digital readout / height	No	Yes / 70 mm	No	No	Yes / 90 mm	Yes / 90 mm
Digital readout / units	–	mm, cm, in, frac, ft	–	–	mm, cm, in, frac, ft	mm, cm, in, frac, ft
Detectable spectrum	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm	600 nm to 800 nm
Automatic shutoff	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes	10 minutes
Audio volumes	High / Low / Off	High / Low / Off	High / Low / Off	High / Low / Off	High / Med / Low / Off	High / Med / Low / Off
Arrow display	5 channels	11 channels	9 channels	9 channels	15 channels	15 channels
Detection accuracies	Fine ± 1 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm	Very Fine ± 0.5 mm Fine ± 1 mm Medium ± 2 mm Coarse ± 3 mm Very Coarse ± 5 mm
Protection class (splash /dust proof)	IP66	IP67	IP67	IP67	IP67	IP67
Battery type / life	1x 9V / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours	2x AA / 50+ hours
Dimensions (HWD)	150 x 80 x 35 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm	173 x 76 x 29 mm
Operating temperature	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C	–20°C to +50°C

Warranty

PROTECT by Leica Geosystems

Our products provide the highest levels of reliability, accuracy and ruggedness –even under the roughest jobsite conditions, making our customers more productive and successful. With Protect by Leica Geosystems, we offer a best-in-class service where customers can count on us, anytime, anywhere:

Lifetime manufacturer’s warranty
Certified quality
No cost period for repair and service
Swiss technology

The Leica Rugby 600 series come with a 3 year no cost period. For more information about PROTECT by Leica Geosystems, please visit: https://leica-geosystems.com/services-and-support/product-services/protect-by-leica-geosystems

Leica Approved Sales, Warranty and Repair Centre

As a main Leica Geosystems agent and warranty centre in the UK we can offer training, specialist product and advice and demonstration and trial of moisture measuring and surveying.

We also offer comprehensive telephone support and training including advice on which product would deliver the best value to you organisation and organizations business requirements. We have a number of sales agents that are on the road visiting customers up and down the UK and these are available for onsite trial and demonstrations.
