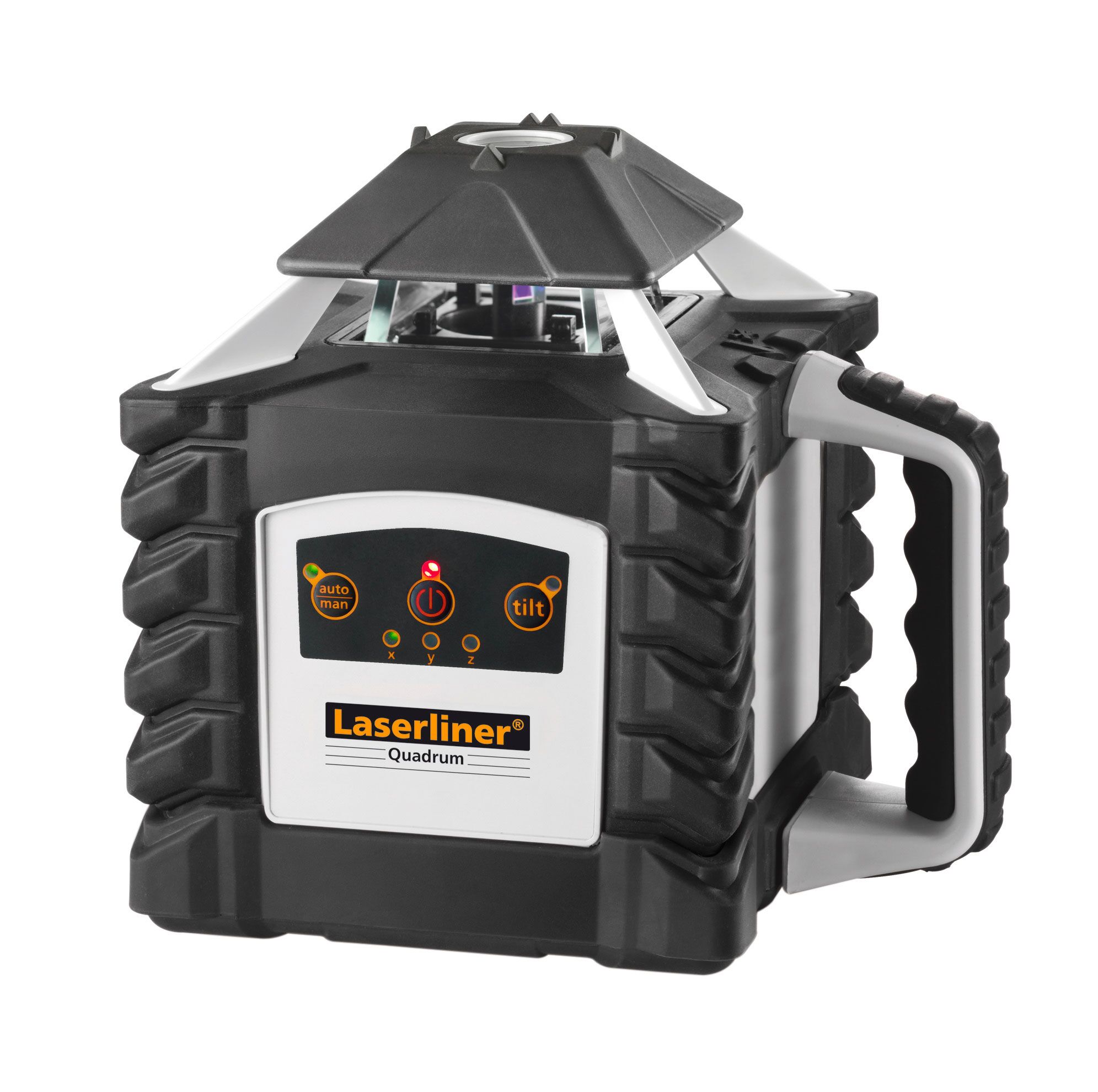

Name: Quadrum 410 S
SKU: 053.00.07A
Price: 619.00 GBP
Availability: InStock

Quadrum 410 S

£619.00 Price incl. VAT: £742.80

SKU: 053.00.07A

Fully automatic RED laser with vertical & horizontal rotary laser.

4 laser modes: spot, scan, rotary & hand receiver mode
Automatic horizontal & vertical level
5º self-levelling range
Laser receiver range up to 300m
Functions can be controlled by remote up to 40m
Battery type: Lithium

Supplied with:

SensoLite 410 Receiver
Universal mount
Remote control
Li-ion battery
Power supply/battery charger
Hard Carry Case
Tripod & Staff
4 Year Warranty

Compare

Description
Product Specification
Warranty
Video Tutorial
About brand
Shipping & Delivery

Description

Fully automatic rotary lasers with an extremely durable design

Robust waterproof housing.
Sensor Automatic: fully automatic alignment via electronic positioning motors controlled by temperature-stable sensors.
ADS tilt: automatic shutoff by ADS (Anti-drift System) when there is an external disturbance.
SpotLite marking: prevents parallax error and eases exact marking of the reference height.
The additional reference beam makes it easier to plumb and align partition walls.
With its extra long receiver unit, the SensoLite 410 enables quick laser acquisition over great distances. LC displays at the front and rear, super-bright three-colour signal LEDs and melodies indicate the level of the laser beam. Tough, waterproof housing with powerful head and side magnets.
A manual slope mode permits the layout of gradients up to 5 °.
All functions of the rotary laser can be controlled with the remote control from up to 40 m.
The 4 IR receiving diodes allow this instrument to be remotely operated from all sides.
Transport Lock: a special motor lock protects the unit during the transport.
Integrated safe-operating concept.

Supplied with:

Laserliner Quadrum 410 S
SensoLite 410 Receiver
Universal mount
Remote control
Li-ion battery

Power supply/battery charger
Hard Carry Case
Tripod & Staff
4 Year Warranty

Laserliner Quadrum 410 S - vertical operating position

Can be vertically positioned on ground or tripod

Robust waterproof housing

With water & dust protection to IP 66

Laserliner Quadrum 410 S - automatic alignment

Fully automatic alignment

Via electronic positioning motors controlled by temperature-stable sensors

Automatic Sensor

With fully automatic alignment via electronic positioning motors controlled by temperature-stable sensors

Video Tutorial

A fully automatic rotary laser for the exact alignment of horizontals & verticals.

Key Features

Range: 300m
Laser modes: spot, scan, rotary & hand receiver mode
5º self-levelling range
Laser receiver range: < 300m
Remote control: < 40m
Accuracy: ± 1 mm @ 10 m
Robust, construction site proof
Battery type: Lithium

Features	Popular with
Range: < 300m (<400m with Sensolite 410 Receiver)	Electricians, HVAC
Levelling accuracy ± 1 mm	Carpenters
Self-levelling range ± 5 °	Plasterers
4 laser modes: spot, scan,rotary & hand receiver mode	Decorators, painters
Protection class IP 67 (Sensolite 410) IP 66 (Quadrum)
Battery type: Lithium
Operating time: 35 hrs, (7 hrs charge)

Laserliner
Quadrum 410 S
Documentation

View and download this product’s brochure, datasheet, and manual in a PDF format

Laserliner Quadrum 410 S – Data Sheet

Product Specification

Range	Range up to 300m* >400m with detector
Levelling accuracy	± 1 mm / 10m
Self-levelling range	± 5°
4 laser modes	Spot, scan, rotary & hand receiver mode
Battery type	Lithium
Operating time	35 hrs (7 hrs charge time)
Protection class	Quadrum IP 66 (SensoLite 410 IP 67)
Dimensions	215 x 205 x 165 mm
Weight with batteries	2.6 kg (with stand & wall bracket)
Tripod thread	5/8″
